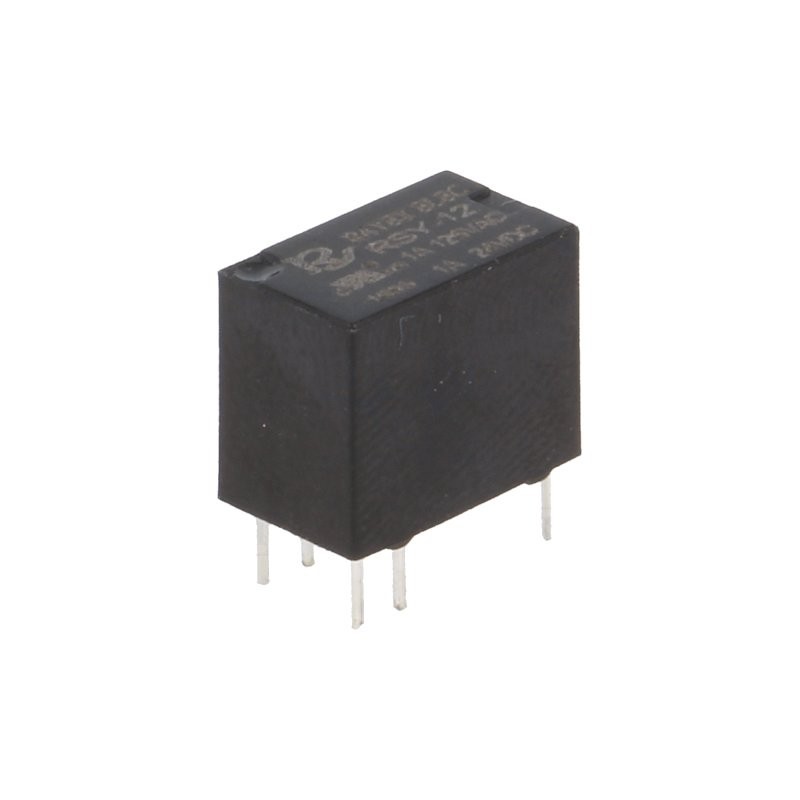

Electromagnetic Relay SPDT 12V DC

: CEL14001
€1.50
Tax included

Relay ideal for designs where space matters!

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Manufacturer RAYEX ELECTRONICS
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating @R
(at resistance load)		 0.5A / 125VAC
DC contacts rating @R
(at resistance load)		 1A / 24VDC
Contact current max. 1A
Switched voltage max 125V AC, max 24V DC
Relay variant subminiature
Mounting PCB
Coil resistance 960Ω
Operate time 4ms
Body dimensions 12.4 x 7.4 x 9.9mm
Release time 3ms
Operating temperature -25...55°C
Relay series RSY
Contact resistance 100mΩ
Contact material AgCdO
Terminal pitch 2.54mm
Coil current 12.5mA

Datasheet: RSY Series
