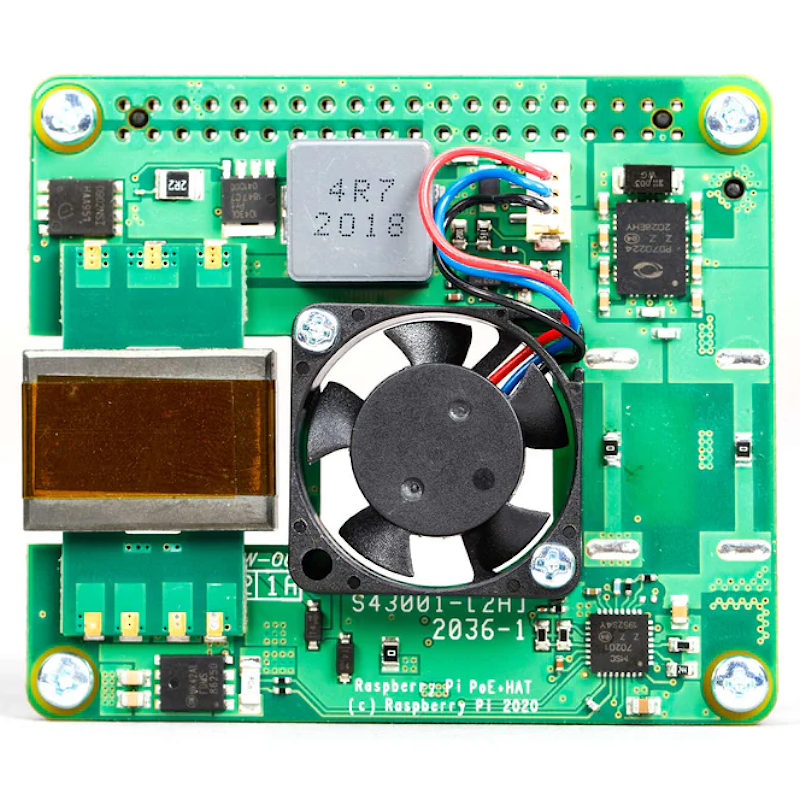

The Raspberry Pi PoE+ HAT is an add-on board for Raspberry Pi computers with PoE pins, including Raspberry Pi 3B+ and Raspberry Pi 4. It is used to power Raspberry Pi via an Ethernet cable, provided that power-sourcing equipment is installed on the Ethernet network. The HAT also includes a fan that will cool the Raspberry Pi processor.
Note: Raspberry Pi is not included.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
The Raspberry Pi PoE+ HAT is a new version of the original Raspberry Pi PoE HAT, now with 5V 4A output for the most demanding Raspberry Pi applications! It is designed to replace the original PoE HAT in all new and existing designs and meets all requirements of the IEEE 802.3af (802.3at Type 1) specifications.
The PoE+ HAT is an add-on board for Raspberry Pi boards with PoE (Power over Ethernet) pins i.e. the Raspberry Pi 4 and Raspberry Pi 3B+. Not compatible with Raspberry Pi 5.
It is used to power a Raspberry Pi via an Ethernet cable, provided that power-sourcing equipment is installed on the Ethernet network. The HAT also includes a fan that will cool the Raspberry Pi processor.
The cooling fan is temperature-controlled, which starts to spin (at a slow speed initially) at 40 degrees. The fan then speeds up as the temperature increases (around every additional 5 degrees) ensuring cool and quiet operation.
The Raspberry Pi PoE+ HAT's overall dimensions are 56.5mm x 65mm (identical to the original PoE HAT).
