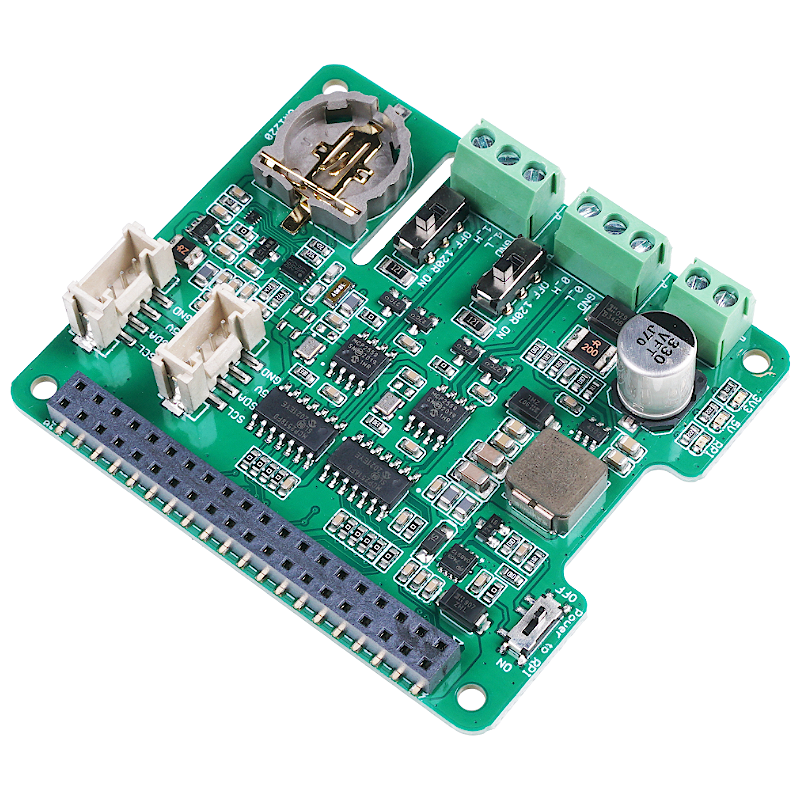

This shield is a 2-Channel CAN-BUS(FD) Shield for Raspberry Pi (MCP2518FD), supports the CAN FD protocol and supports transmission speed up to 8 Mbps.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Support CAN FD
Support Jetson Nano
High-speed transfer rate: 8Mbps@10m 20AWG shielded cable / 1Mbps@40m 20AWG shielded cable
Stable power supply, selectable Raspberry Pi power supply or DC power supply
One-button configuration of 120Ω terminating resistor
Compatible with Raspberry Pi 2, Raspberry Pi 3, Raspberry Pi Zero, Raspberry Pi 4
Figure 1. hardware overview
Attention: You can see that we used nylon columns during assembly to avoid short-circuiting between the metal terminals under the CAN BUS port and the HDMI interface on the Raspberry Pi. So please be sure to assemble the nylon column as shown.
Note: Please note that this shield does not contain a Raspberry Pi, if you need one, please check here.
