M.2 HAT+ for Raspberry Pi 5 - Raspberry Pi SC1166

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

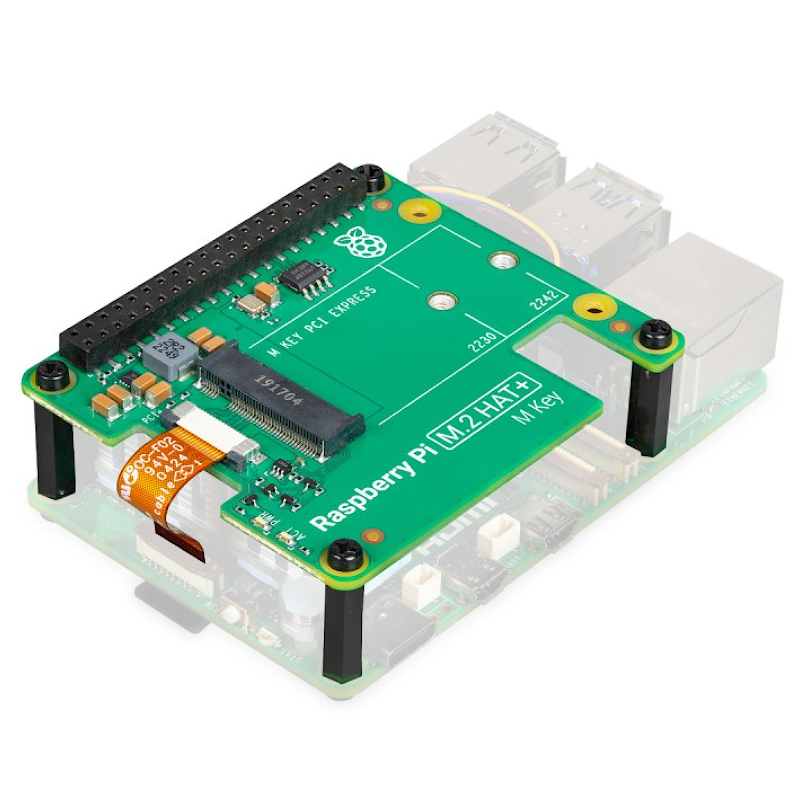

The Raspberry Pi M.2 HAT+ enables you to connect M.2 peripherals such as NVMe drives and AI accelerators to Raspberry Pi 5’s PCIe 2.0 interface, supporting fast (up to 500 MB/s) data transfer to and from NVMe drives and other PCIe accessories.

Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mm-pitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of supplying up to 3A to connected M.2 devices.

The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software/firmware. It is supplied with a 16mm stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the Raspberry Pi Active Cooler in place.

Features:

1. • Supports single-lane PCIe 2.0 interface

2. (500 MB/s peak transfer rate)

3. • Supports devices that use the M.2 M key edge connector

4. • Supports devices with the 2230 or 2242 form factor

5. • Capable of supplying up to 3A to connected M.2 devices

6. • Includes power and activity LEDs

7. • Conforms to the Raspberry Pi HAT+ specification

8. • Supplied with ribbon cable, 16mm stacking header, threaded

9. spacers and screws, and knurled double-flanged screw to

10. secure and support the M.2 peripheral

Operating temperature: 0℃ to 50℃ (ambient)

Documents:

1. Raspberry Pi M.2 HAT+ product brief

2. Raspberry Pi M.2 HAT+ assembly instructions

3. Raspberry Pi M.2 HAT+ schematics
