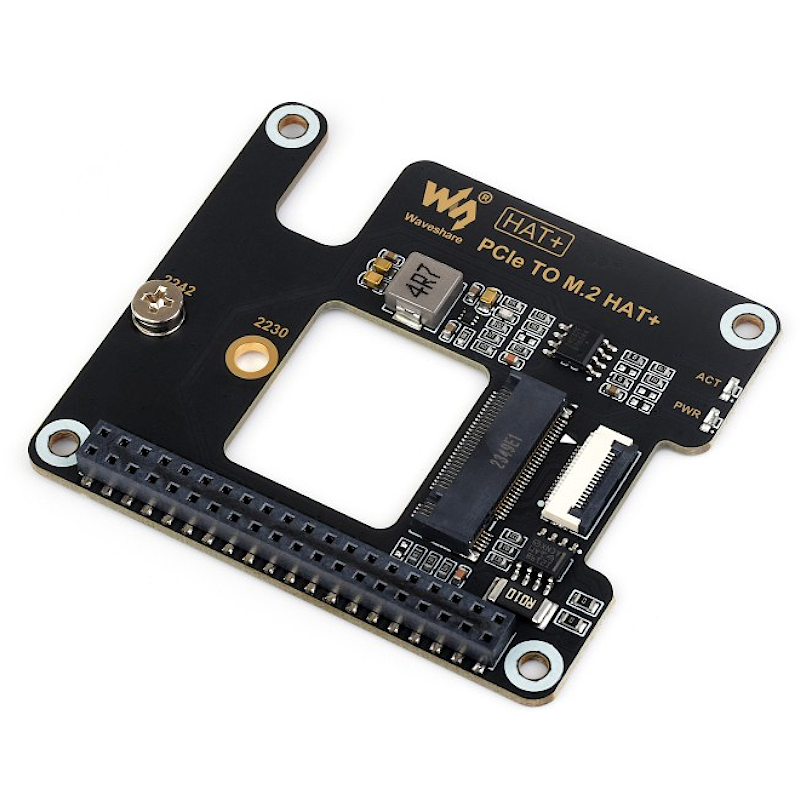

PCIe To M.2 NVMe Adapter HAT for Raspberry Pi 5, High-speed R/W (no SSD included)- Waveshare 26583

:PCO01216
€8.90
Tax included

PCIe to M.2 M key adapter board for Raspberry Pi 5, compatible with M.2 solid state drive in 2230 / 2242 size, supports Gen2 and Gen3 modes, supports booting PI5 from SSD.

If you want to know more about this product, please check its Wiki Page.

NOTE: Raspberry Pi board and official active cooler are not included!

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

PCIe To M.2 Adapter for Raspberry Pi 5

Designed for Raspberry Pi 5 - Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing

PCIe To M.2 Adapter for Raspberry Pi 5, front view







Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

PCIe TO M.2 HAT+, connecting to PI5 via 16PIN cable

* for reference only, please refer to the Package Content for detailed part list



NVMe Drive Protocol Support

Compatible With 2230/2242 Size M.2 Solid State Drive - Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

PCIe TO M.2 HAT+, compatible With 2230/2242 Size M.2 Solid State Drive





Onboard Dual LED Indicators

Easy to monitor the Working Status

PCIe TO M.2 HAT+, onboard dual LED indicators







Onboard Power Monitoring Chip And EEPROM

Real-time monitoring of Solid State Drive power status for More Stable operation

PCIe TO M.2 HAT+, onboard power monitoring chip and EEPROM



Reserved Airflow Vent for Cooling fan

Better Cooling Effect For Pi5 And Solid State Drive

PCIe TO M.2 HAT+, reserved airflow vent for cooling fan

* for reference only, the Raspberry Pi 5 and cooling fan are not included



How to install

PCIe TO M.2 HAT+, how to install

* for reference only, please refer to the Package Content for detailed part list



Outline dimensions

PCIe TO M.2 HAT+, outline dimensions

Resources & Services


Wiki: www.waveshare.com/wiki/PCIe_TO_M.2_HAT+





Package Content

Weight: 0.022 kg

  1. PCIe TO M.2 HAT+ x1

  2. 2*20 Pin header x1

  3. 16P-Cable-40mm x1

  4. Standoff pack x1

PCIe TO M.2 HAT+ kit

PCO01216
