USB 3.2 Gen1 HUB HAT for Raspberry Pi, 4x USB 3.2 Gen1 Ports, Driver-Free

: PCO01157
€15.95
Tax included

This is a driver-free 4 ports USB 3.2 Gen1 hub HAT for Raspberry Pi, provides more USB capability to your Pi, make it easy to connect more USB devices.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

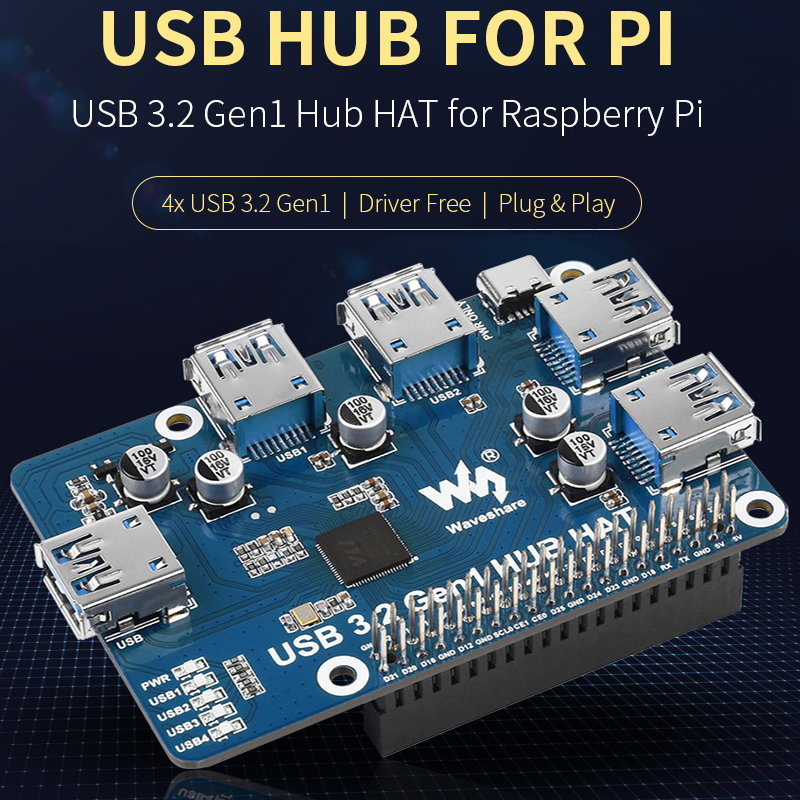

USB 3.2 Gen1 HUB HAT for Raspberry Pi, 4x USB 3.2 Gen1 Ports, driver-free

This is a driver-free 4 ports USB 3.2 Gen1 hub HAT for Raspberry Pi, provides more USB capability to your Pi, make it easy to connect more USB devices.

The HAT features standard Raspberry Pi 40PIN GPIO extension header, when working with Raspberry Pi 4, the USB 3.2 Gen1 ports is able to provide up to 5 Gbps data rate, which means 10 times faster than USB 2.0.


Features at a glance
  1. 4x USB 3.2 Gen1 ports, compatible with USB 3.0 / 2.0 /1.1
  2. Onboard external USB-C 5V DC power port, ensures more stable power supply
  3. 1x power indicator and 4x USB port indicators, easy to check the operating status
  4. Driver-free, plug and play, compatible with OS including Windows, mac OS, Linux and Android
  5. Purpose-made for Raspberry Pi 4, compatible with other Raspberry Pi version as well
  6. Comes with development resources and manual

Designed for Raspberry Pi series

Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards

Note: Only Raspberry Pi 4B and Pi 400 support USB 3.0 for the moment, therefore, when working with other previous Raspberry Pi versions, there will be a data rate degradation.


External power supply support

Onboard external USB-C 5V DC power port

Combined with the Raspberry Pi USB power source, it is capable of connecting more USB loads, even the high-power disk device


Multiple indicators

Easy to check the operating status of power and USB ports


Various USB devices support

Driver free, plug & play

compatible with OS including Windows, mac OS, Linux and Android


What's on board
  1. Raspberry Pi GPIO header
    for connecting Raspberry Pi
  2. USB 3.2 Gen1 HUB input
    connects to Raspberry Pi USB port
  3. USB 3.2 Gen1 extended ports
    USB1~USB4
  4. PWR ONLY port
    for external USB-C 5V DC power input
  1. VL817-Q7
    USB HUB chip
  2. MX25L512EOI-10G
    FLASH chip
  3. PWR
    power indicator
  4. USB1~USB4
    USB1~USB4 indicators

Outline dimensions

Resources & Services


* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Package Content

Weight: 0.089 kg

  1. USB 3.2 Gen1 HUB HAT x1
  2. USB 3.0 Adapter x1
  3. USB 2.0 Adapter x1
  4. USB 3.0 dual plug cable x1
  5. RPi screws pack (2PCS) x1
1USB-3.2-Gen1-HUB-HAT-3_220.jpg2USB-2.0-Adapter_93.jpg3USB-3.0-Adapter_93.jpg4USB3.0-Cable-TypeA-Double-Plug-60cm_93.jpg5RPi-screws-pack-16-x2.jpg
