HAT L298P Motor Driver for Raspberry Pi - Keyestudio KS0218

: PCO01161
€11.25
Tax included

Keyestudio RPI L298P motor drive shield adopts high-power motor driver chip L298P, which can directly drive two DC motors, with drive current up to 2A, and motor output terminal uses eight high-speed Schottky diodes as protection.
The shield is fully compatible with various versions of Raspberry Pi. Meanwhile, the shield has leaded out each interface for simple connection of other sensors. If you to know more about this product, please cheack: Wiki Page


Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

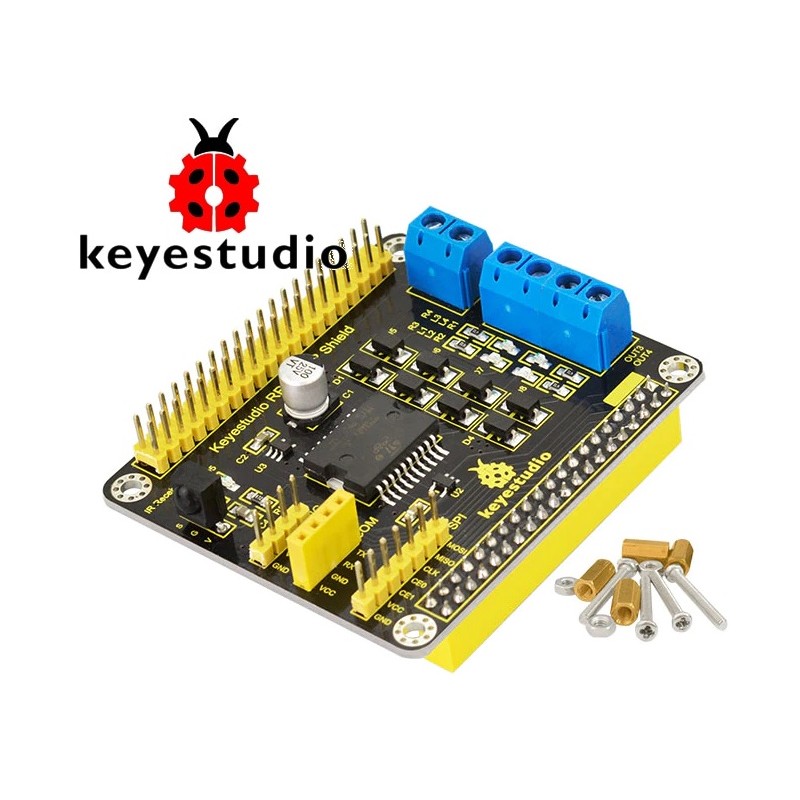

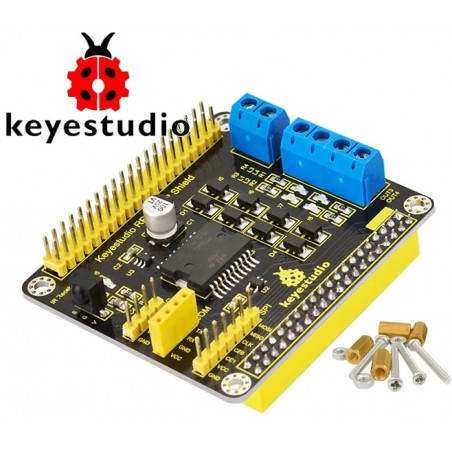

Keyestudio RPI L298P motor drive shield adopts high-power motor driver chip L298P, which can directly drive two DC motors, with drive current up to 2A, and motor output terminal uses eight high-speed Schottky diodes as protection.
The shield is fully compatible with various versions of Raspberry Pi. Meanwhile, the shield has leaded out each interface for simple connection of other sensors. This shield also has an IR receiver, so you can use infrared remote control to communicate with it.
To make it easier for you to mount the shield to your Raspberry Pi, we have specially provided you with 4 M2.5*20MM round-head screws, 4 double-pass M2.5*10MM copper pillars and 4 M2.5 nickel-plating Nuts.

KS0218~1000 (1)KS0218~1000 (6)KS0218~1000 (3)KS0218~1000 (7)KS0218~1000 (4)KS0218~1000 (2)

1

Documents

Wiki page tutorial
