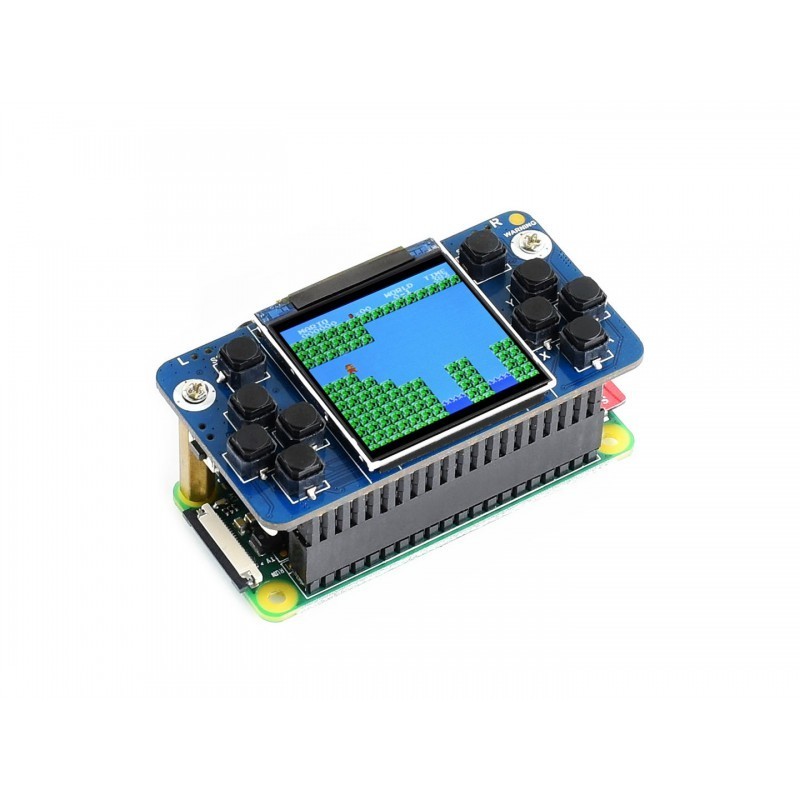

Tiny GamePi15 Designed for Raspberry Pi, Good Match for the Zero
The GamePi15 will turn your Raspberry Pi into a tiny retro game console in a second, recalls you all the gaming pleasures in the memory.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Overview
The GamePi15 will turn your Raspberry Pi into a tiny retro game console in a second, recalls you all the gaming pleasures in the memory.
The Special One for Zero
You might have noticed that there're so many game console solutions for the regular size Pi in the market, but rare for the Pi Zero.
That's why we publish this GamePi15, a full-functional game console expansion in the extreme compact size, tailored for the Raspberry Pi Zero/Zero W/Zero WH. Simply combine it with the Zero, now you get a literally "portable console", have fun anywhere anytime.
Features
- 1.54inch screen, 240×240 resolution
- Compatible with Raspberry Pi Zero/Zero W/Zero WH/B+/2B/3B/3B+
- Integrates battery charge circuitry, powered from a 14500 lithium battery (NOT included), plays anywhere anytime
- Battery capacity indicator
- Onboard speaker and earphone jack, listen to the familiar BGM from the old days
- Onboard volume knob, adjust the volume according to specific game, better experience
Keys/Display Introduction
- Game function keys vary according to specific game
What's on Board
- Raspberry Pi GPIO connector
- 8205 reverse protection chip
- XB8777A over charge/discharge protection chip
- 14500 battery
- Volume adjustment knob
- Earphone jack
- Speaker
- USB charge port: charge the battery by connecting the 5V power adapter
- Power switch
- Game function keys
- Battery reverse warning indicator: light up when the battery is reversed
- Battery capacity indicators: 4x LEDs for indicating the remaining battery life or charge status
Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/GamePi15
Selection Guide
PARTNUMBER | CATEGORY | DISPLAY | REQUIREMENTS |
---|---|---|---|
GamePi15 | Portable Game Console | 1.54inch display, 240×240 resolution | Pi required |
GamePi20 | Portable Game Console | 2.0inch IPS display, 320×240 resolution | Pi included, out-of-box |
GamePi20-Acce | Portable Game Console | 2.0inch IPS display, 320×240 resolution | Pi required |
Game HAT | Portable Game Console | 3.5inch IPS display, 480×320 resolution | Pi required |
GamePi43 | Portable Game Console | 4.3inch IPS display, 800×480 resolution | Pi included, out-of-box |
GamePi43-Acce | Portable Game Console | 4.3inch IPS display, 800×480 resolution | Pi required |
Arcade-101-1P | Arcade Machine | 10.1inch IPS display, 1024×600 resolution | Pi included |
Arcade-C-1P | Arcade Console, 1 Player | NONE, supports 1920×1080 resolution | Pi included, HDMI display required |
Arcade-C-1P Acce Pack | Arcade Console, 1 Player | NONE, supports 1920×1080 resolution | Pi required, HDMI display required |
Arcade-D-1P | USB Arcade Control Box | NONE, No video output | Raspberry Pi / PC / Tablet / Smart TV required |
PACKAGE CONTENT
Weight: 0.047 kg
Note: the Raspberry Pi and 14500 battery are NOT included.
- GamePi15 x1
- Screws pack x1
- Screwdriver x1
