DESCRIPTION

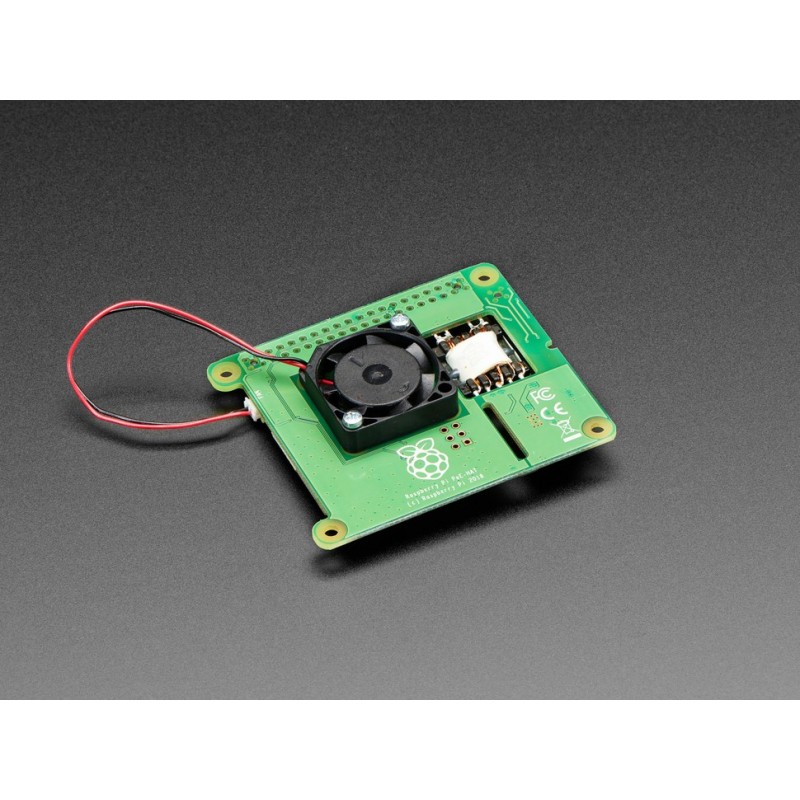

Power over Ethernet (PoE) can make your project wiring a breeze - instead of needing a wire for power and data, you can use one Ethernet cable for both!

Simply attach the standoffs in the four corners of the HAT, then connect to the 40-pin header. Once the HAT is connected, you can power your Pi through the RJ-45 network connector.

Compatible only with Raspberry Pi 3 B+ that has PoE pins

For people with non-Pi 3 B+'s, or if you can't use a HAT in your setup, check out our PoE to MicroUSB splitter, which will work with any computer that is powered from Micro USB.

Features:

• 802.3af PoE
• Fully isolated switched-mode power supply
• 37–57V DC, Class 2 device
• 5V/2.5A DC output
• Adorable 25x25mm temperature-controlled brushless fan keeps your kit cool

TECHNICAL DETAILS

For more information, check out Raspberry Pi's website

Product Dimensions: 65.0mm x 56.5mm x 5.3mm / 2.6" x 2.2" x 0.2"

Product Weight: 23.0g / 0.8oz

• Product Brief
• Diagram
