RS485 CAN HAT for Raspberry Pi - WS

: PCO01111
€10.90
Tax included

The RS485 CAN HAT will enables your Pi to communicate with other devices stably in long-distance via RS485/CAN functions.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

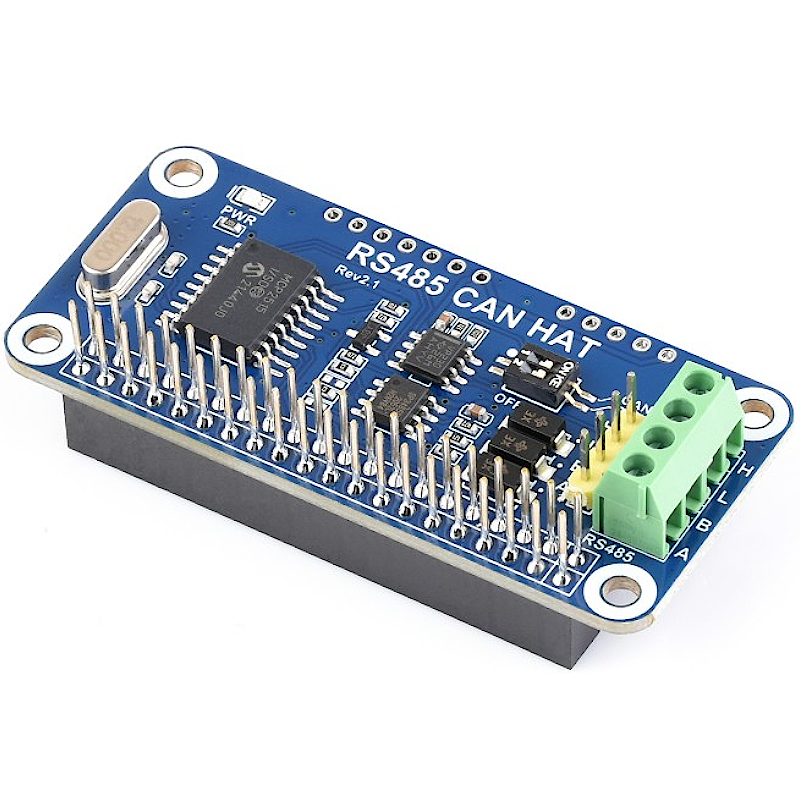

RS485 CAN HAT for Raspberry Pi

Allows Stable Long-distance Communication between Raspberry Pi and other devices

Comes with online development resources and manual




Features at a glance

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SIT65HVD230DR
  • RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
  • Onboard 120Ω terminal resistor for RS485 and CAN interfaces, enabled via DIP switch
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
  • Reserved control header, allows working with other control boards
  • Comes with online development resources and manual (examples in wiringPi/python)



Specifications

CAN controller MCP2515 Operating voltage 3.3V
CAN transceiver SIT65HVD230DR Mounting hole size 3.0mm
485 transceiver SP3485 Dimension 65×30mm



Designed for Raspberry Pi Series

Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards


Expand CAN and RS485 functions

CAN: onboard CAN controller MCP2515 via SPI interface, with transceiver SIT65HVD230DR
RS485: controlled via UART, half-duplex communication, onboard transceiver SP3485


Onboard Transient Voltage Suppressor

effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving


Pin Definition


Product show


Outline dimensions


Resources & Services



WIKI: www.waveshare.com/wiki/RS485_CAN_HAT
