RPi Relay Board

: PCO01070
€16.90
Tax included

The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.

RPi Relay Board Features

  • Supports Raspberry Pi A+/B+/2B/3B
  • High quality relays, loads up to 250VAC/5A, 30VDC/5A
  • Photo coupling isolation, prevent interference from high voltage circuit
  • Onboard LEDs for indicating relays status
  • Relay control jumper, allows to control the relays by custom pins other than the default pins
  • Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835

What's on the RPi Relay Board

Raspberry Pi Expansion Board on board resource

  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. Relay screw terminal: for connecting target devices
  3. Relays
  4. Photocoupler: PC817
  5. Relay indicator

  • LED on: relay NC is opened, NO is closed
  • LED off: relay NC is closed, NO is opened

Power indicator Relay control jumper

  • short the jumper: control the relays by default I/Os used in the example code
  • open the jumper: control the relays by custom I/Os through jumper wires

Photos

Raspberry Pi Expansion Board

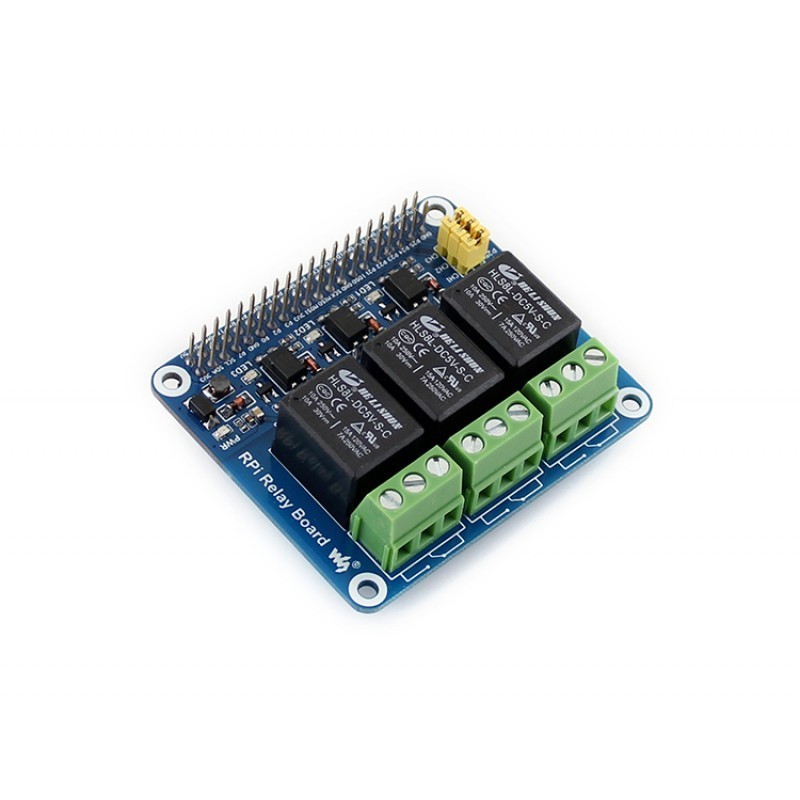

RPi Relay Board
Raspberry Pi Expansion Board
RPi Relay Board back view
Raspberry Pi Expansion Board
RPi Relay Board connecting with Raspberry Pi
Raspberry Pi Expansion Board
Control the lamp by mobile phone

Note : the Pi in the photos is NOT included.

Dimensions

RPi Relay Board board dimensions

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Relay_Board
