Standard SG5010 Servo 6kg

: MOT03022
€9.90
Tax included

Stall Torque: 5.2kg·cm(4.8v)  6.5kg·cm(6.0v)

Quantity

Introduction

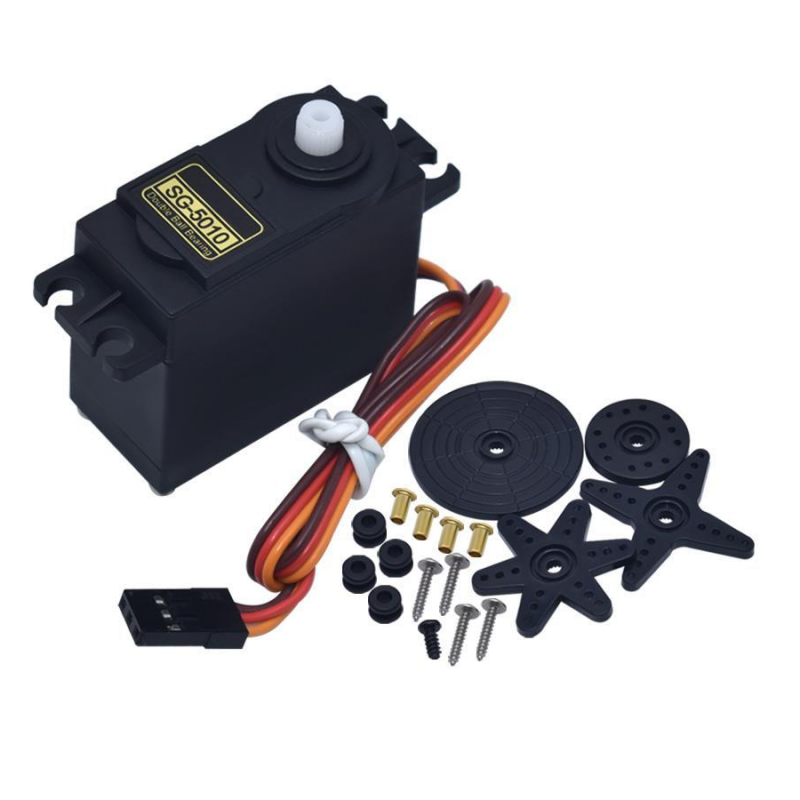

This is a standard servo SG-5010 (compatible from towerpro). It only weights 43g and provides a 6.5kg.cm torque at 6V.

Specification:

1.Stall torque: 5.2kg·cm(4.8v)  6.5kg·cm(6.0v)
2.Operating speed: 0.14sec/60degree(4.8v) 0.11sec/60degree(6.0v)
3.Operating voltage: 4.2V~7.0V
4.Temperature rang: -20℃~60℃
5.Dead band width: 4ms
6.Dimension: 40mmX20mmX44mm
7.Weight: 41g
8. All nylon gear

MOT03022
