6Kg 180° Clutch Servo - DFRobot SER0051

: MOT03045
€12.30
Tax included

When a servo is operated under complex circumstances such as robot and model, it may get stuck, be burned or damaged due to external forces, which could bother you a lot, with this servo that will not happen.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

When a servo is operated under complex circumstances such as robot and model, it may get stuck, be burned or damaged due to external forces, which could bother you a lot...

Now DFRobot is launching a series of servos with clutch function and electronic protection that can solve your problems perfectly.



Clutch function

When the angle of a servo is changed by external forces during normal operation, the servo can automatically reset and continue working through clutch function, which prevents it from being damaged.



Electronic protection

After being blocked for 5 seconds, the servo will automatically turn off its power to avoid getting burned.



Servo Internal structure

6Kg 180° Clutch Servo

This servo features large torque, stable performance, accurate running angle and easy to install. The operating voltage is 4.8~6V. When the servo is powered at 6V, its stall torque will exceed 6kg.cm. Since there is no limit switch inside the servo, users can make the servo rotate smoothly in 360 degrees (manually only). Besides, the servo could operate fluently with minimal power, and you can just supply power to it by normal battery or USB. In addition, users can directly control the servo using servo libraries in Arduino IDE and let it reach a maximum 180 degrees rotation angle within the pulse range of 500-2500μsec.



Mechanical Dimensions

6Kg 180° Clutch Servo



Selection Guide for Clutch Servo

Model

6kg 180°

6kg 300°

9g 180°

9g 300°

2kg 180°

2kg 300°

SKU

SER0051

SER0057

SER0049

SER0053

SER0050

SER0056

Operating Voltage

4.8-6VDC

4.8-6V DC

4.8-6V DC

4.8-6V DC

4.8-6V DC

4.8-6V DC

Quiescent Current

≤10mA at 6.0V

≤10mA at 6.0V

≤8mA at 6.0V

≤8mA at 6.0V

≤8mA at 6.0V

≤8mA at 6.0V

No-load Current

≤60mA at 6.0V

≤60mA at 6.0V

≤50mA at 4.8V

≤60mA at 6.0V

≤50mA at 4.8V

≤60mA at 6.0V

≤110mA at 4.8V

 ≤120mA at 6.0V

≤110mA at 4.8V

≤120mA at 6.0V

Stall Current

≤1.65A at 6.0V

≤1.65A at 6.0V

≤550mA at 4.8V

≤650mA at 6.0V

≤550mA at 4.8V

≤650mA at 6.0V

≤700mA at 4.8V

≤800mA at 6.0V

≤700mA at 4.8V

≤800mA at 6.0V

Rated Torque

≥4.4kg.com at 6.0V

≥4.4kg.com at 6.0V

≥0.32kgf·cm at 4.8V

≤0.4kgf·cm at 6.0V

≥0.32kgf·cm at 4.8V

≤0.4kgf·cm at 6.0V

≥0.45kgf·cm at 4.8V

≥0.55kgf·cm at 6.0V

≥0.45kgf·cm at 4.8V

≥0.55kgf·cm at 6.0V

Stall Torque

≥6kg·cm at 6.0V

≥6kg·cm at 6.0V

≥1.0kgf·cm at 4.8V

≤1.2kgf·cm at 6.0V

≥1.0kgf·cm at 4.8V

≤1.2kgf·cm at 6.0V

≥1.6kgf·cm at 4.8V

≥2.0kgf·cm at 6.0V

≥1.6kgf·cm at 4.8V

≥2.0kgf·cm at 6.0V

Operating Angle

180°±10°

300°±10°

180°±10°

300°±10°

180°±10°

300°±10°

Pulse Width Range

500~2500μs

500~2500μs

500~2500μs

500~2500μs

500~2500μs

500~2500μs

Communication Mode

PWM

PWM

PWM

PWM

PWM

PWM



Specification

  1. Operating Voltage: 4.8-6V DC

  2. Static Current: ≤10mA @ 6.0V

  3. Current(at no load): ≤60mA @6.0V

  4. Current(at stopped): ≤1.65A @6.0V

  5. Rated Torque: ≥4.4kg·cm @6.0V

  6. Stall Torque: ≥6kg·cm @6.0V

  7. Operatable Travel: 180°±10°

  8. Pulse Width Range: 500~2500μs

  9. Communication Mode: PWM



Projects



Shipping List

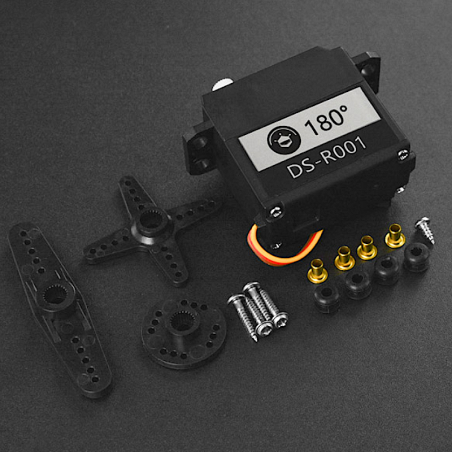

  1. 6Kg 180° Clutch Servo x1

  2. Servo Plate & Accessories x1 set

MOT03045
