DF Metal Geared 15Kg Standard Servo 270° (DSS-M15S)

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.


DSS-M15S is a heavy-duty metal gear standard servo with 270°wide angle, high torque power, improved stability and durability.

Able to take in 6V and deliver a strong torque power of over 15Kg, this tough 270°servo will never let you down when you need it. Tested with high load capacity for 12 hours long, this DSS-M15S servo demonstrates a maximum torque of 18Kg without much vibration or heat.

In addition, we enclose carefully selected steering parts, including an aluminum alloy wheel and a long bracket, to enhance servo performance.

SPECIFICATION

• Voltage: 4.8-7.2 Volts
• Torque: 13.5Kg*cm/15Kg*cm (6.0V/7.0V)
• Speed: 0.18 sec/60°/0.16 sec/60° (6.0V/7.0V)
• Free Run Current: 80mA/100mA (6.0V/7.0V)
• Stall Current: 1.8A/2A (6.0V/7.0V)
• Standby Current: 4mA/5mA (6.0V/7.0V)
• Rotation: 270°
• Wheel Gear: Metal
• Gear Ratio: 310:1
• Dimension: 54.5*20*47.5mm(2.15*0.79*1.87")
• Signal: RC PWM
• Pulse Range: 500-2500 us
• Frequency: 50-330Hz（Arduion-compatible）

DOCUMENTS

• Electrical Specification
• Mechanical Specification
• Control Specification
• Mechanical Drawing

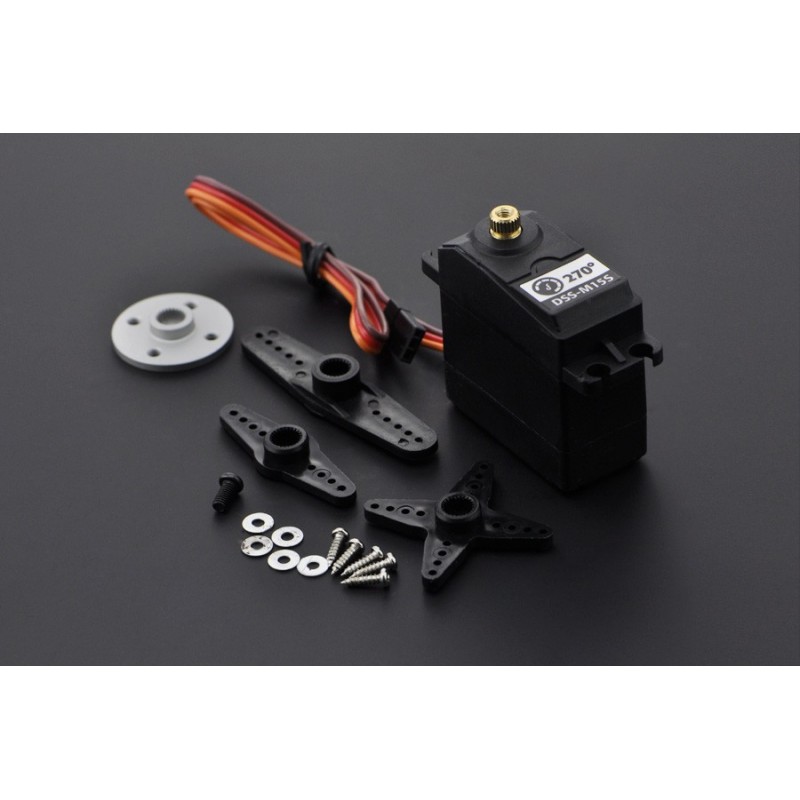

SHIPPING LIST

• DSS-M15S Servo x1
• Metal round servo horn x1
• X servo horn x1
• long straight servo horn x1
• Straight servo horn x1
• M2*8 self tapping screw x5
• M2 screw washer x5
• M3*6 screw x1
