Servo - Generic High Torque Full Rotation (Standard Size)

: MOT03008
€17.45
Tax included

Servo - Large Full Rotation

Quantity

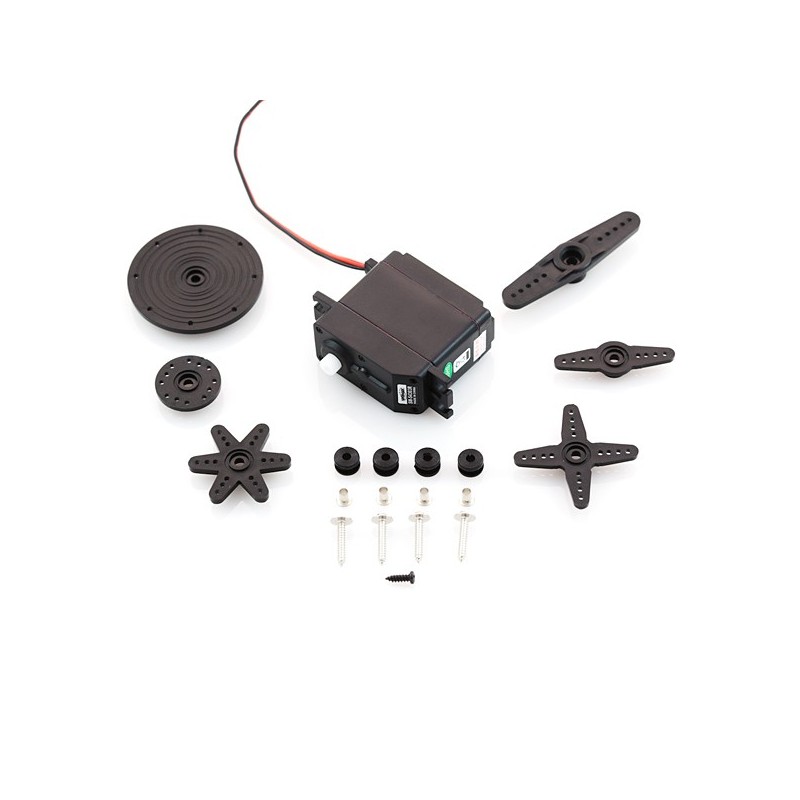

Description: Here, for all your mechatronic needs, is a simple, high quality continuous full-rotation servo motor. A standard 3-pin power and control cable is attached and all hardware shown is included.

Features:

  • Continuous 360° rotation
  • Rest point adjustment
  • Operating voltage: 4.8-6.0VDC
  • Top operating speed: 60-70RPM (4.8-6.0VDC respectively)
  • Torque: 3.3-4.8 kg-cm (4.8-6.0VDC respectively)
  • 4 plastic gears + 1 metal gear
  • Double ball bearing

Dimensions:

  • 42 x 39.5 x 22.5mm
  • Wire length: 30cm
  • Weight: 44g
