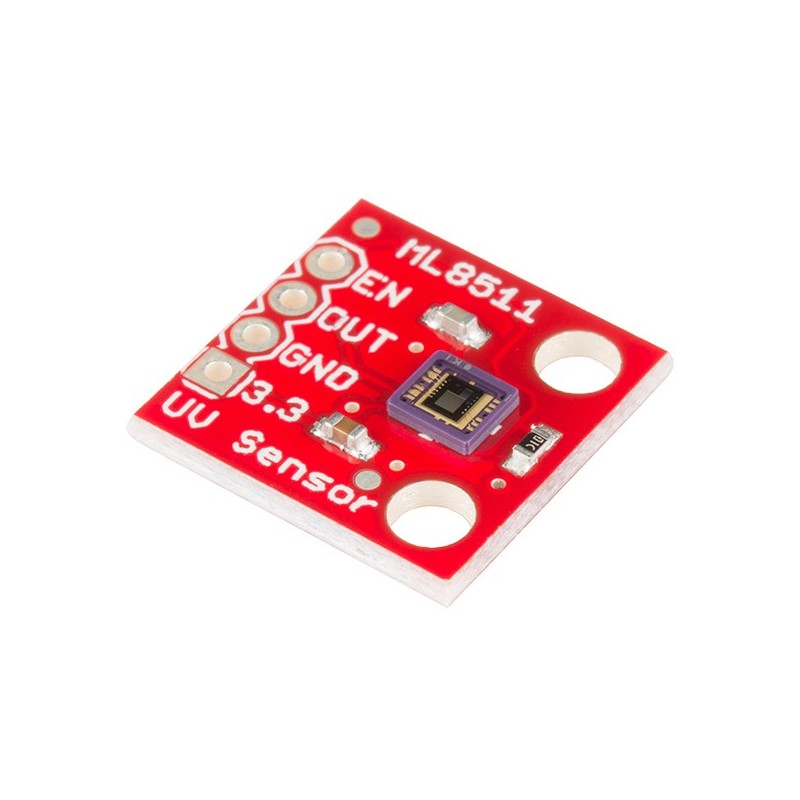

SparkFun UV Sensor Breakout - ML8511

This breakout can be very handy in creating devices that warn the user of sunburn or detect the UV index as it relates to weather conditions.

This sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs a analog voltage that is linearly related to the measured UV intensity (mW/cm2). If your microcontroller can do an analog to digital signal conversion then you can detect the level of UV!

Documents:

• Schematic

• Eagle Files

• Datasheet

• Hookup Guide

• GitHub (Design Files & Example Code)

• Product Video
