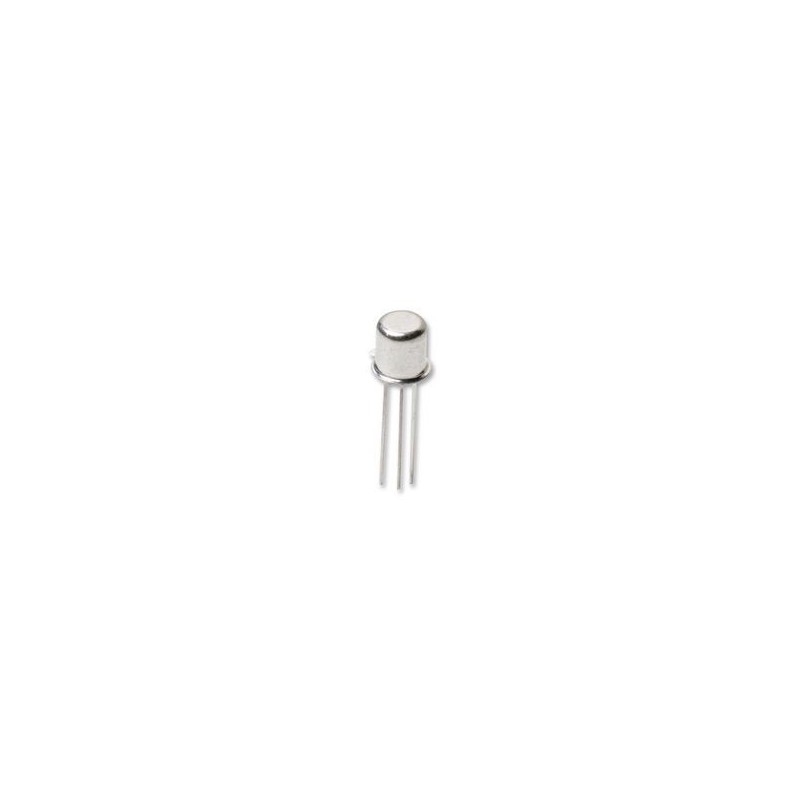

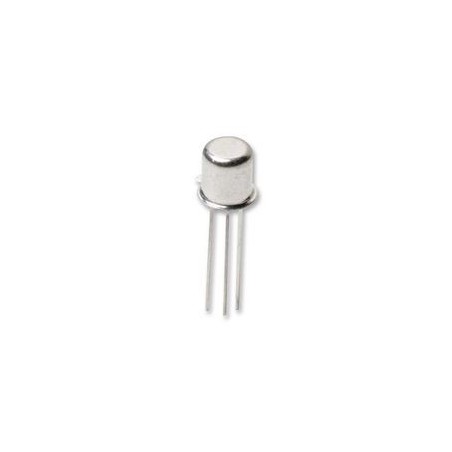

2N2222A Transistor - Metal Enclosure

The 2N2222A from Multicomp is a through hole, silicon planar NPN high speed switching transistors in TO-18 metal can package. This transistor features fast switching, short turn off and low saturation voltage. This transistor is used for switching, linear DC power supply and VHF amplifier applications.

• Collector emitter voltage (Vce) of 40V
• Continuous collector current (Ic) of 800mA
• Power dissipation of 500mW
• Operating junction temperature range from -65°C to 200°C
• Collector emitter saturation voltage of 1V at 500mA collector current
• DC current gain is greater than 35 at Ic=0.1 mA



• Transistor Polarity: NPN
• Collector Emitter Voltage V(br)ceo: 40V
• Transition Frequency ft: 300MHz
• Power Dissipation Pd: 1.2W
• DC Collector Current: 800mA
• DC Current Gain hFE: 30hFE
• Transistor Case Style: TO-18
• No. of Pins: 3Pins
• Operating Temperature Max: 200°C
• Product Range: -
• Automotive Qualification Standard: -
• MSL: -
• SVHC: No SVHC (17-Dec-2015)
