Features at a glance

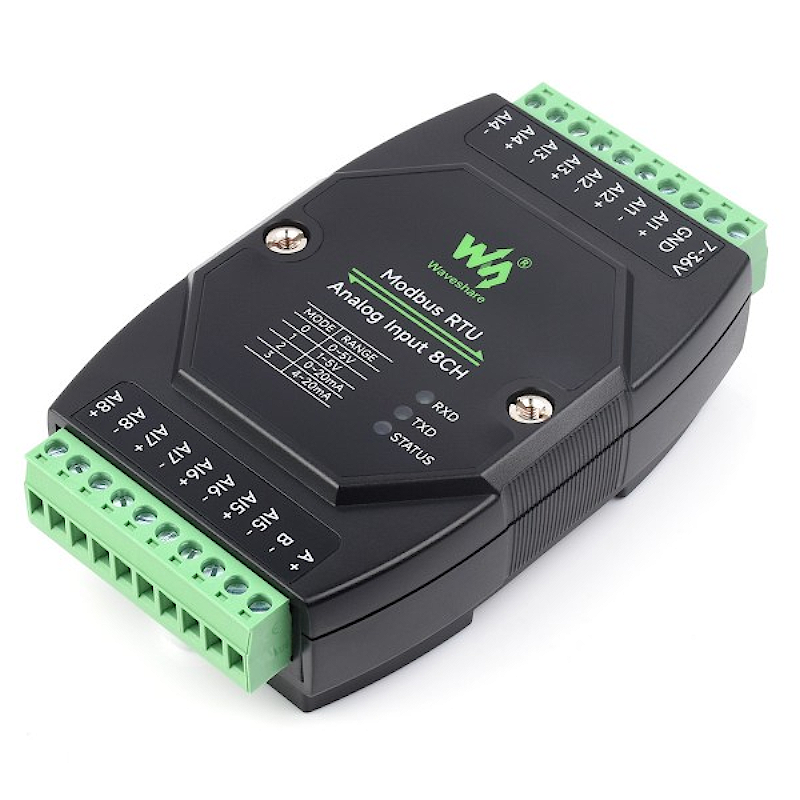

Modbus RTU Analog Input 8CH is an industrial standard analog acquisition module, supports multiple ranges and 8-ch simultaneous acquisition. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.
-
Configurable device address (1~255), multi devices can be cascaded on RS485 bus
-
Onboard voltage regulator, supports 7~36V wide range power supply
-
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
-
Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
-
Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
-
Supports 12-bit high-precision acquisition with multiple range input modes, supports single-ended/differential input, supports voltage and current simultaneous acquisition
-
Adopts high-precision resistors and zero-drift high-precision operational amplifier for more accurate data acquisition
-
Built-in oversampling digital filtering algorithm, onboard watchdog, for stable output without crashing
-
Rail-mount case design, support stacking combination, easy to install and safer to use
-
3x LEDs for indicating the MCU status and signal transceiving status
Specifications
|
Model
|
Modbus RTU Analog Input 8CH
|
Modbus RTU Analog Input 8CH (B)
|
|
Communication interface
|
RS485
|
|
Baud rate
|
4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
|
|
Default communication format
|
9600, N, 8, 1
|
|
Modbus protocol
|
Standard Modbus RTU protocol
|
|
Power supply
|
DC 7~36V
|
|
Sampling accuracy
|
12-bit resolution, accuracy ≤3%
|
|
Data update rate
|
25Hz
|
|
Input mode
|
supports single-ended/differential input, supports voltage and current simultaneous acquisition
|
|
Default mode
|
8-ch current mode, 0~20mA
|
8-ch voltage mode, 0~10V
|
|
Range
|
0~5V/1~5V
0~20mA/4~20mA
|
0~10V/2~10V
0~20mA/4~20mA
|
|
current Sampling resistor
|
249Ω
|
499Ω
|
Primary function
Supports sending Modbus RTU protocol commands via RS485 to acquire data from 0~20mA/0~10V sensor
Industrial Grade Isolated Protection
Onboard power and signal dual isolation for RS485 communication, provides stable isolation voltage, features high reliability and strong anti-interference performance. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable current and voltage output, provides over-current and over-voltage proof, improves shock-proof performance, suitable for the industrial environments with high requirement.
Supports voltage/current acquisition Wider Measurement range
8-ch analog acquisition interfaces, voltage and current acquisition is switchable via jumper. Multiple Ranges Configurable via Software
Interface introduction
Connection Diagram
Supports setting device address (1~255) for Multi-Device Cascading, supports single-ended/differential input, supports voltage and current simultaneous acquisition
Wide voltage power supply, isolated RS485 interface
Built-in fuse and anti-reverse protection, with ESD protection for analog input
Rail-Mount Support
Supports 35mm standard guide rail, with rail-mount buckle, easy to install.
Supports stacking installation
Dimensions
