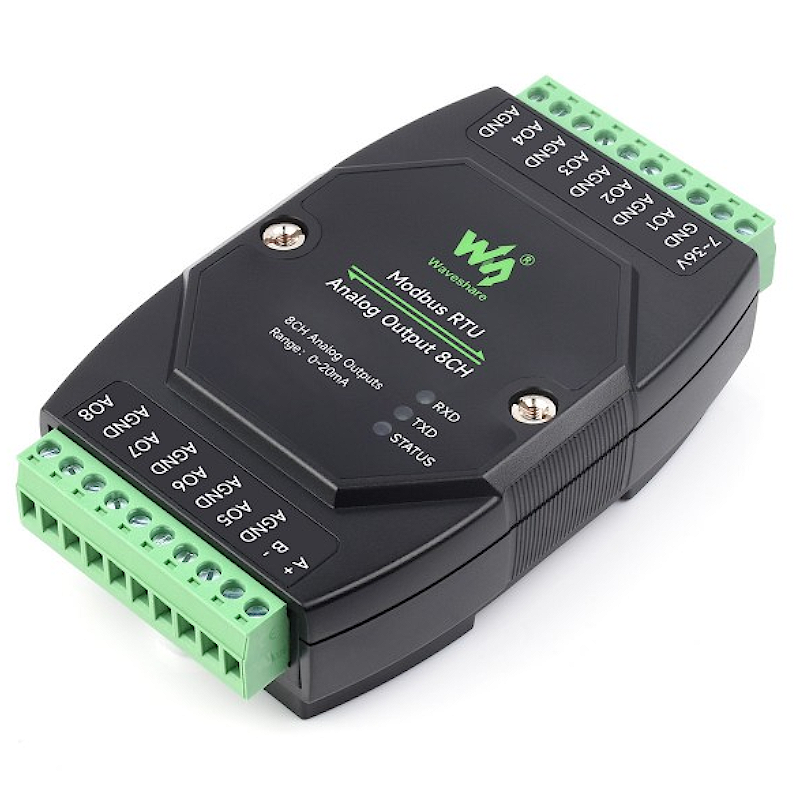

Industrial Modbus RTU 8-Ch Analog Output Module 12-bit DA (Output 0~20mA) - Waveshare 26419

Reference : COM03034

€24.90

Tax included

This Modbus RTU Analog Output Module is a versatile and reliable device designed for industrial applications. With 8 channels, it allows for easy and precise control of analog signals. It is compatible with Modbus communication protocols, making it easy to integrate into existing systems. Its compact size and easy installation make it a convenient choice for various automation projects.

If you want to know more about this product, check out its Wiki Page.

Description

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features at a glance

Modbus RTU Analog Output 8CH is an industrial standard analog output module, supports 8-ch simultaneous output. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.

Configurable device address (1~255), multi devices can be cascaded on RS485 bus
Onboard voltage regulator, supports 7~36V wide range power supply
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
12-bit DA conversion, using high-precision resistors for more accurate output data
Onboard watchdog, for stable output without crashing
Rail-mount case design, support stacking combination, easy to install and safer to use
3x LEDs for indicating the MCU status and signal transceiving status

Specifications

Model	Modbus RTU Analog Output 8CH	Modbus RTU Analog Output 8CH (B)
Communication interface	RS485
Baud rate	4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default communication format	9600, N, 8, 1
Modbus protocol	Standard Modbus RTU protocol
Power supply	DC 7~36V
Output	8-ch current output	8-ch voltage output
Resolution	12-bit, 1μA	12-bit, 1mV
Range	0~20mA	0~10V
Output Accuracy	±0.03mA	±0.01V

Primary function

Supports sending Modbus RTU protocol commands via RS485 and outputing data to 0~10V or 0~20mA sensor

Industrial Grade Isolated Protection

Onboard power and signal dual isolation for RS485 communication, provides stable isolation voltage, features high reliability and strong anti-interference performance. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable current and voltage output, provides over-current and over-voltage proof, improves shock-proof performance, suitable for industrial environments with high requirement.
