MBH88 - 8 x 16A modbus relay

: MRE04017
€159.90
Tax included

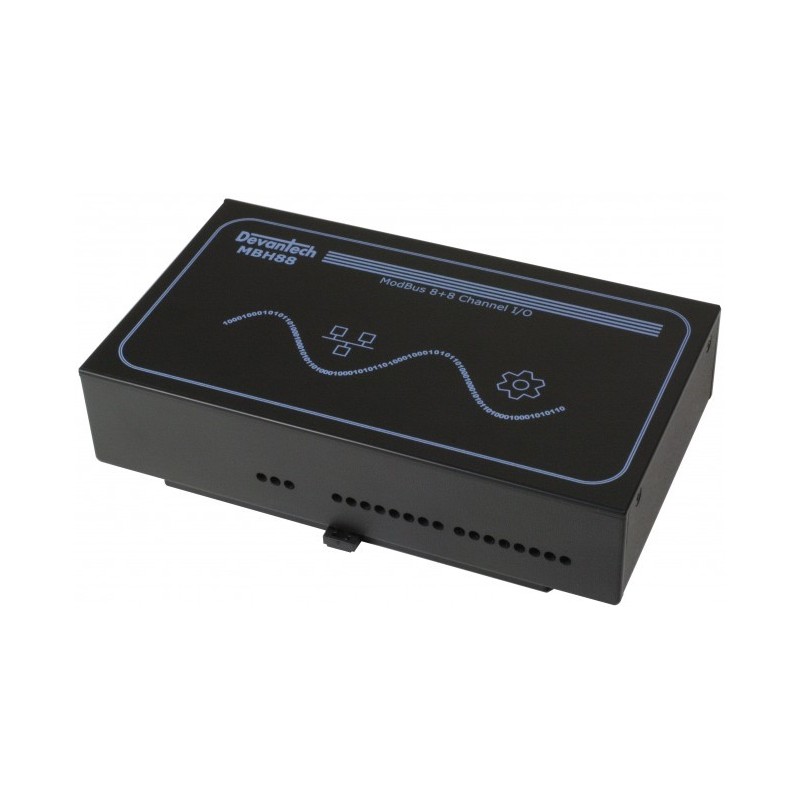

The MBH88 is supplied in a DIN rail mounting case, and
provides eight optically isolated
inputs and eight volt free contact relay outputs with a current rating of up to 16Amp each.
Eight isolated inputs may be used as volt free inputs (ie. direct connection to switches or
sensor contacts) or as voltage inputs (5-24vdc).
Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Controlled by modbus RTU over RS485, address, baud rate and parity set by dip switch.

Relays - 8 VFC with snubbers on N/O
Digital opto isolated inputs - 8
Power - Universal input: 90 – 264Vac, 47-63Hz
Control interface - Modbus RTU over RS485.
Relay current - Up to 16Amp @24vdc or 250vac
Connections - Screw Terminals for N/O N/C and Common contacts.

Datasheet

MRE04017
