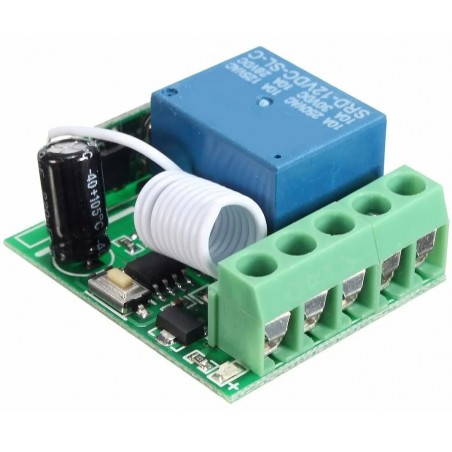

433MHz Codec-Adaptive Wireless Relay

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specification:

1.Input Voltage: DC10-14V
2.Standby Current: <5MA
3.RF Frequency: 433MHZ
4.RF Working mode:Super heterodyne receiver
5.Receiver Sensitivity: >90dBm
6.Remote Control Distance: >100 meter(In open environment)
7.Decoding Way: MCU Software decoding
8.Can store the number of remote control:50
9.Support remote control type: Fixed code, learning code
10.Channel: 1CH
11.Multiple working modes: (Jog and Self-locking)
12.Wiring Method:Fixed wiring terminal
13.Working Voltage: DC12V
14.Output Current: 10A
15.Rated load:10A 250VAC / 10A 125VAC
10A 30VDC / 10A 28VDC
16.Output:Normally open,Common,Normally closed

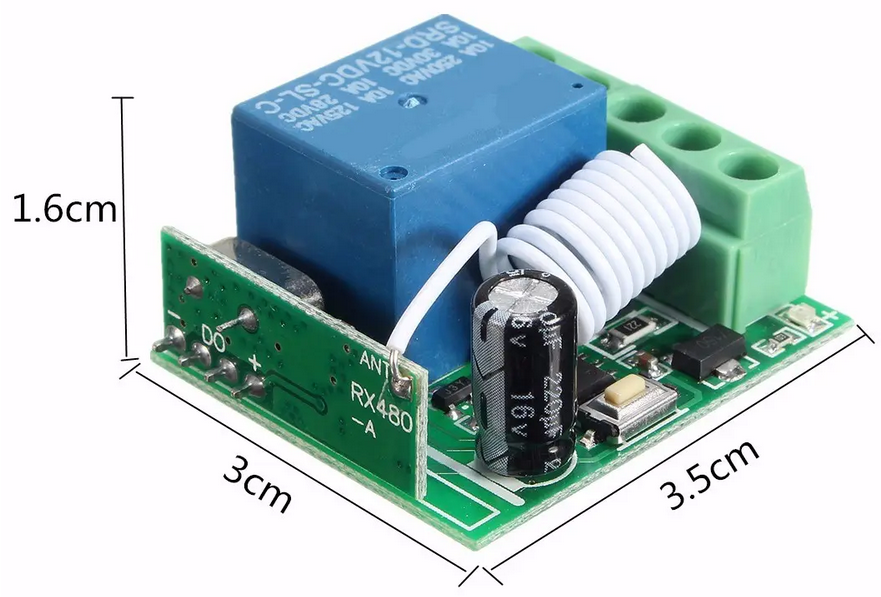

17.Dimension:35x30x16mm

Working/output way:

1.Jog: Press the learning button then release, wait for a while, when the board LED is on, said it is into the learning state, press the remote control. The LED flashes 5 times and goes off again. The system automatically withdraw from the learning state. On this mode the relay closes while the remote controller button is pressed.

2.Self-locking: Press the learning button then release, wait for a while, when the board LED is on, press again the learning button 3 times, wait for a while, when the board LED is on, said it is into the learning state, press the remote control. The LED flashes 5 times and goes off again. The system automatically withdraw from the learning state. On this mode the relay changes its state every time the remote controller button is pressed.


Package included:

1 x 12V 1CH 433MHz Wireless Relay Switch Receiver
