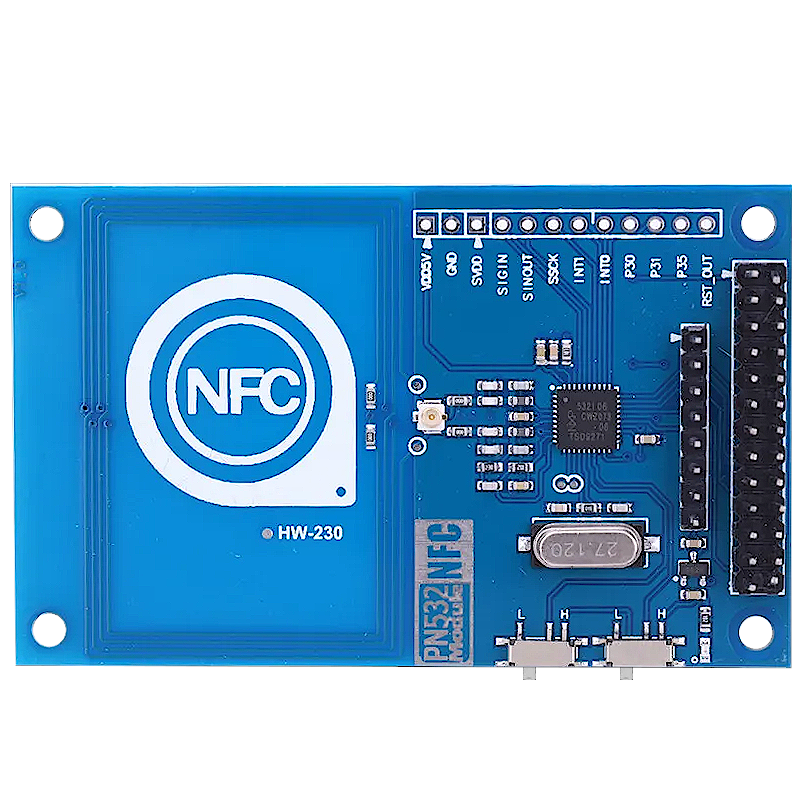

PN532 NFC 13.56MHz Module for Arduino and Raspberry Pi

:COM05090
€15.00
Tax included

The ITEAD PN532 NFC module, as its name implies, is based on the PN532 chip and used for 13.56 MHz near-field communication. The module is equipped with onboard antenna, so no external antenna is needed. It supports SPI, IIC and UART interface for communication. With NFC library support for Arduino and Raspberry Pi offered by us, it is quite convenient for developing products with NFC functions.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The PN532 13.56MHz NFC Card Reader Module is a high-performance device designed to provide near-field communication (NFC) capabilities for your projects. Compatible with Raspberry Pi, this module is ideal for applications such as access control, personal identification, micropayment and NFC tag reading.

Equipped with the PN532 chipset, this module can read and write to NFC cards and tags in a frequency range of 13.56MHz. It is compatible with different types of NFC cards, making it a versatile option for your projects.

Add NFC capabilities to your Raspberry Pi projects with this easy-to-install module and experience the convenience and efficiency of near-field communications.

Main features:

 Raspberry Pi Compatibility: Designed to easily integrate with Raspberry Pi systems.
 NFC Versatility: Capable of reading and writing to a wide variety of NFC cards and tags.
 13.56 MHz Frequency: Operates in the standard NFC frequency range of 13.56 MHz.
 Wide applications: Ideal for access control, personal identification, micropayment and NFC tag reading.
 PN532 Chipset: Equipped with industry-leading NFC chipset for reliable performance.

Technical Features:

  1.  chipset: PN532.
  2.  Operating frequency: 13.56MHz.
  3.  Scope of operation: 30mm
  4.  Supported cards: Mifare Classic, Mifare Ultralight, Mifare Pro, DESFire, etc.
  5.  Communication interface: SPI, I2C, UART.
  6.  Operating voltage: 3.3V.
  7.  Supply voltage: 3.3 ~ 5.5V
  8.  dimensions: 43mm x 40mm.

Links to GitHub repositories and other sources that may be relevant to users of the PN532 NFC Card Reader Module:

  1.  PN532: This Seeed Studio GitHub repository provides an Arduino library with examples for the PN532 NFC module.
  2.  Adafruit-PN532: Adafruit repository with a library for Arduino and examples for the PN532 NFC module.
  3.  libnfc: libnfc is a library that allows the development of NFC applications across multiple platforms. It supports the PN532 chip.
  4.  enquete nfc: A GitHub repository that provides example code for reading an NFC card using the PN532 chip.

Hardware

There are two slide switches on the board for selecting the interface mode:

  SET0 SET1
UART L L
SPI L H
IIC H L
