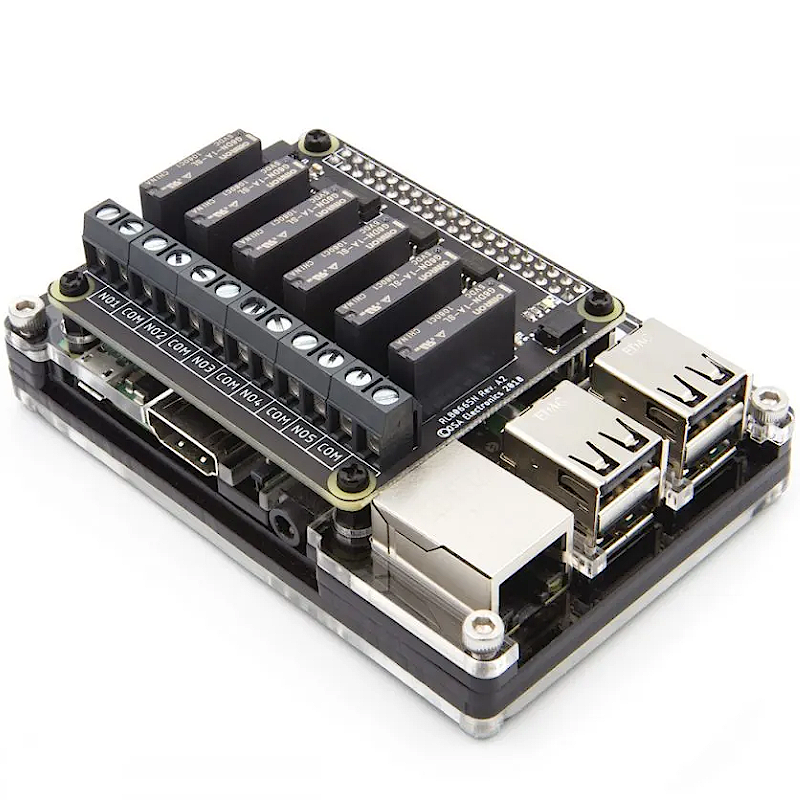

6 Channel Relay Board HAT - Osa Electronics RLB0665N

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

The RLB0665N is a small 6 Channel relay board that can meet your needs for your home or industrial automation projects.. It’s plugs directly on the Raspberry Pi A+/B+/2/3/3B+/4B. Compatible with Rock 4 and 5, Asus Tinker board, Jetson Nano and other ones using the same GPIO.

You can control AC/DC Motors, Electrovalves, Solenoides, Vibrators, Actuators and many more.

Specifications

1. Omron SPST Slim Power Relays

2. High switching capability 5 A (250 VAC and 30 VDC), and high contact reliability by crossbar-twin contact

3. Low power consumption: 750 mW (150mA)

4. Fully isolated using industrial Vishay Optocouplers

5. LED indicator on each relay for on/off status

6. Onboard I²C connector (Qwiic compatible) for peripherals

7. Up to 8 boards in chain, address selectable

8. Compatible with Raspberry Pi and others using the same GPIO

9. Designed and assembled in the beautiful Barcelona, Spain.
