Cherokey: 4WD Mobile Robot for Arduino with L298 driver onboard - DFRobot ROB0102

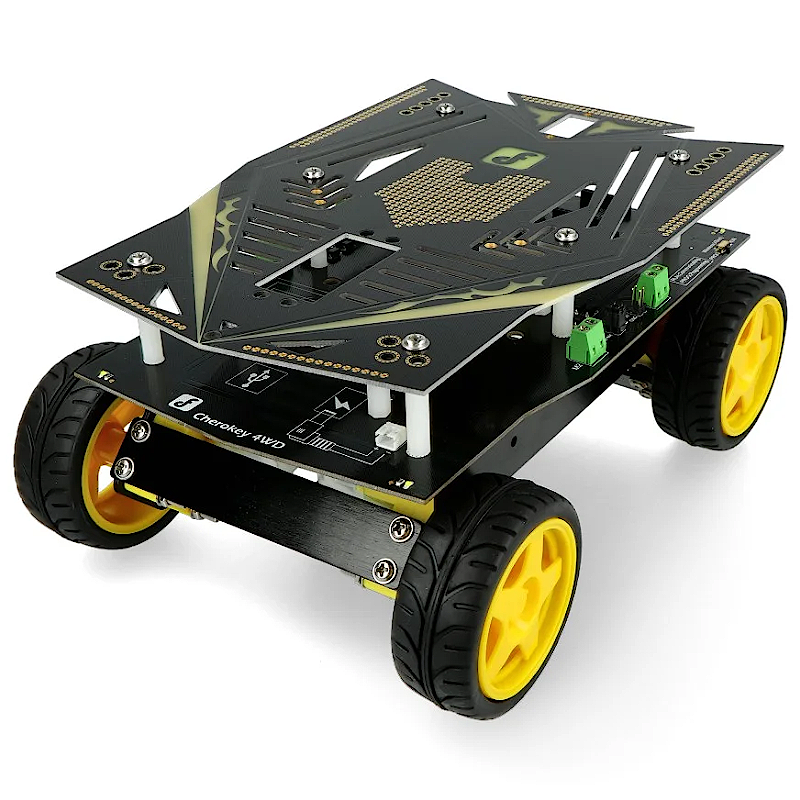

The Cherokey 4WD mobile robot is a versatile mobile robot jeep compatible with the most popular microcontrollers like DFRduino UNO R3 - Arduino Compatible, Mega2560 (Arduino compatible microcontroller board), Romeo V2 - a Robot Control Board with Motor Driver (Compatible with Arduino)...etc. Cherokey embeded the L298P motor driver chip which allows to drive of two 6-12V DC motors with maximum 2A current.The integrated 2 way DC motor driver and Xbee & APC220 socket allows you to start your project immediately without the need for an additional motor driver or wirless shield.

The expansion plate board significantly increases the surface area of Cherokey, allowing you to easily connect a 9g micro servo or a standard sized servo in two different locations so that you can install robotic arm or ultrasonic/ir sensors. The prototyping area makes you convenient to install sensors on the robot. Double-side leaf pads solder prototyping areas in the middle can be soldered with DIP components or SMD components to extend addition function.

Its high-strength aluminum alloy body material provides flexibility in rapid movement particularly in outdoor grass, gravel, sand, or sloped surface. The Cherokey 4WD Mobile robot Platform is also suitable for robot competitions and research-related projects.


Recommended Microntroller:

1. DFRduino UNO R3

2. Arduino UNO R3

3. Romeo V2 - a Robot Control Board with Motor Driver (Compatible with Arduino)

1. Education/competition robot

2. Mobile robotic arm

3. Outdoors 4WD mobile robot...ect

1. 2 channel DC motor driver

2. Solder prototyping areas

3. Standard Servo stocket

4. Mounting holes compatible with Arduino UNO,Mega, Romeo

5. Incorporates dual H-bridge for bi-directional motor control (digital pins 4,5,6,7 suggest)

6. Easy connection to Xbee, DFRobot Bluetooth, and APC220 wireless modules

7. 7 white LEDs around the board for effect

8. TT Geared Motor with Back Shaft (180rpm 6v L Shape)

9. Size: 55mm x 48.3mm x 23mm(2.17"x1.90"x0.91")

10. Weight:45g

11. Assembled size:225*174*112

1. Wiki (Cherokey 4WD Mobile Platform (SKU: ROB0102))

2. Assembly Guide

3. Assembly Size in mm

4. Schematic

1. Cherokey 4WD chassis x1

2. Cherokey expansion plate x1

3. Aluminum side-panel x2

4. Aluminum connecting-rod x4

5. 5xAA battery holder x1

6. PH-2.0 to DC-2.2 adapter x1

7. Screws KIT x1

8. Micro DC Geared Motors (FIT0016) x4

9. Rubber Wheels (FIT0003) x4

10. Instruction manual  x1
