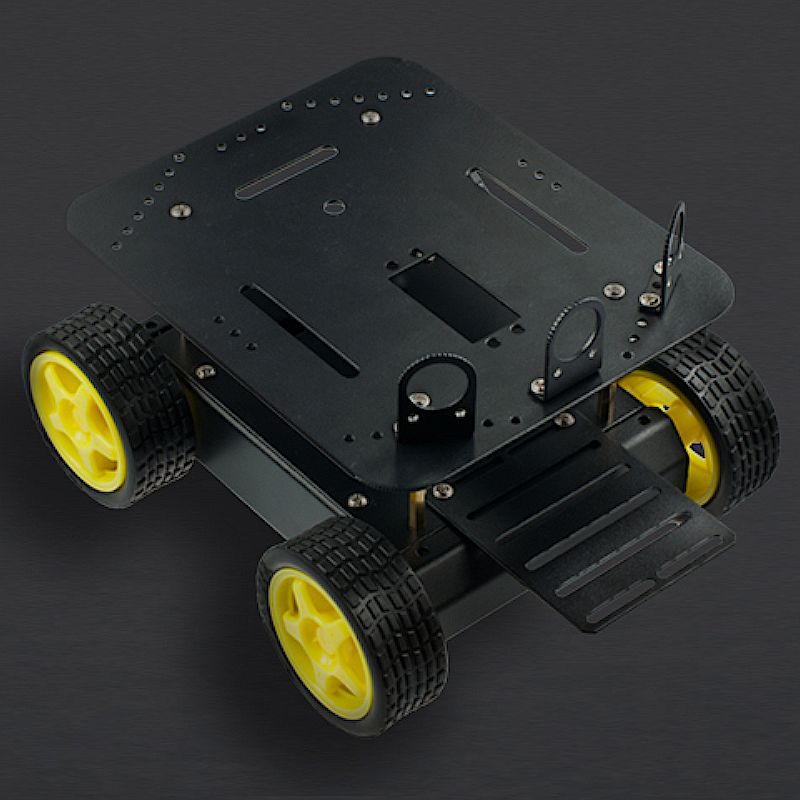

Pirate - 4WD Mobile Platform for Arduino - DFRobot ROB0003

The DFRobot 4WD Mobile Platform for Arduino is intended for use with the DFRobot ROMEO Microcontroller and includes 4x drive motors, 4x wheels, and a complete chassis with mounting hardware. The included second level allows you to add more electronics and define a modular layout. The rectangular hole allows for a servo to be attached and be used for several purposes like a movable camera or a robotic arm. The high-strength aluminum alloy body material provides flexibility in rapid movement particularly in outdoor grass, gravel, sand, or sloped surface. Increased life span of the electronics and gears due to the chasis study structure. Pirate-4WD Mobile Platform for Arduino is also suitable for robot competitions and research-related projects.

A variety of sensors can be easily added and kept protected from external damage. The bottom sturdy case keeps the motors and battery pack protected to avoid fall damage. If you have built from salvaged parts before, you can tell the difference from a high-strength aluminum alloy that holds parts together and is tailored for sensors and electronic assembly.



Warning: Motor encoders are not compatible with this platform

1. 4WD mobile robot development platform for Arduino

2. 4 high-quality micro-speed motor

3. Complete chassis with mounting hardware

4. Variety of sensors can be added

1. 4WD Mobile platform Motors: 3 ~ 7.5V DC

2. Speed: 90cm/s

3. Dimensions: 200 x 170 x 105mm (7.9 x 6.7 x 4.1 in)

4. TT Geared Motor Specification ( FIT0016)

1. Wheel Encoders (SEN0038)

2. Romeo All-in-one Controller (DFR0225)

1. Assembly Tutorial by RuG Community

2. DFRobot pirate 4WD (Robot VAPP)

3. Assembly Guide by Opensource Hardware Group

4. Raspberry Internet Rover (Based on Pirate 4WD platform and Romeo V2)

1. Wiki 4WD Mobile Platform (SKU:ROB0003)

2. Instruction Manual V3.1

3. 3D model

1. Pirate-4WD Mobile Platform x1
