4WD Robot Smart Car Platform - Transpartent

: ROB04011
€19.40
Tax included

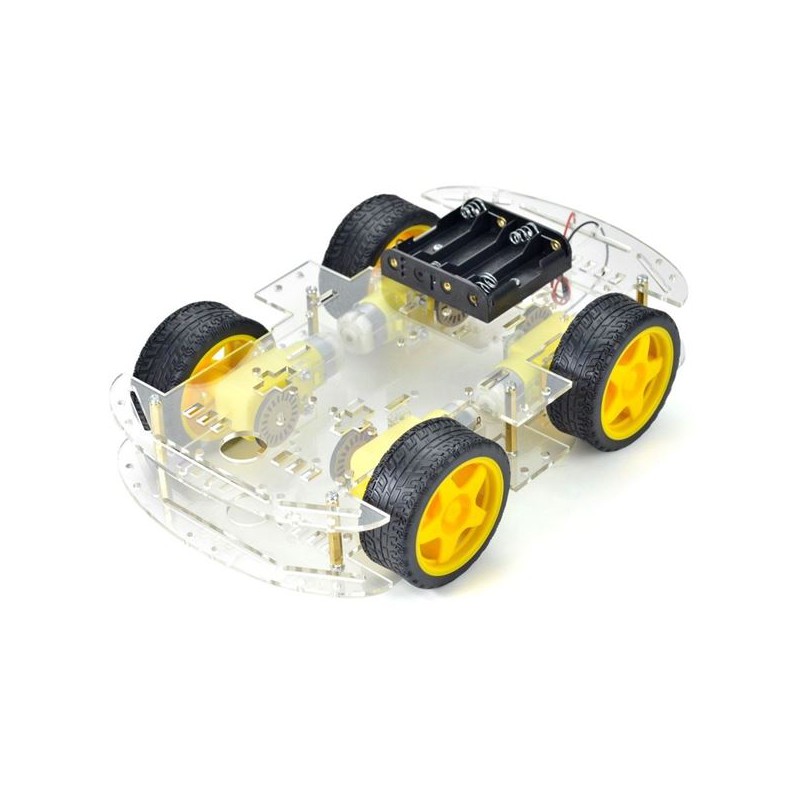

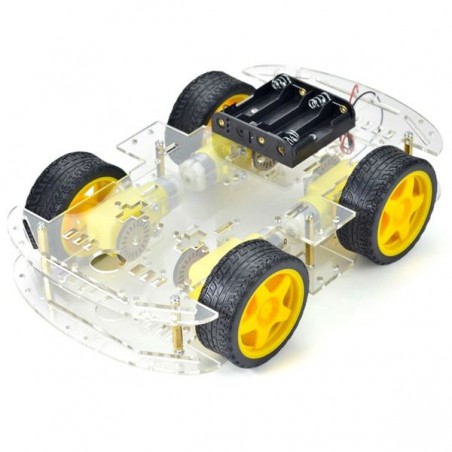

This Kit only contains mechanical parts for you to start exploring the robot world, it can be used to build a four-wheel robot car. If you want it to run, you need some electronics parts to control it.



Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Specifications:

  • Motor working voltage: DC 3V / 5V / 6V
  • Motor working current: 100mA / 100mA / 120mA
  • No Load RPM: 100 RPM / 190 RPM / 240 RPM
  • No Load speed: 20 m / min, 39 m / min, 48 m / min
  • Wheel diameter: 66 mm (aprox)
  • Dimensions: (L * W * H): 25.5 * 15.5 * 6.5 cm (aprox)


Package Content:

  • 4x Wheels

  • 4x DC gear motor (6V 240RPM)

  • 8x Motor Wires

  • 4x Encoder Wheels

  • 2x Acrylic chassis

  • 1x 4xAA Battery bracket

  • 1x Set of screws, nuts and spacers

ROB04011
