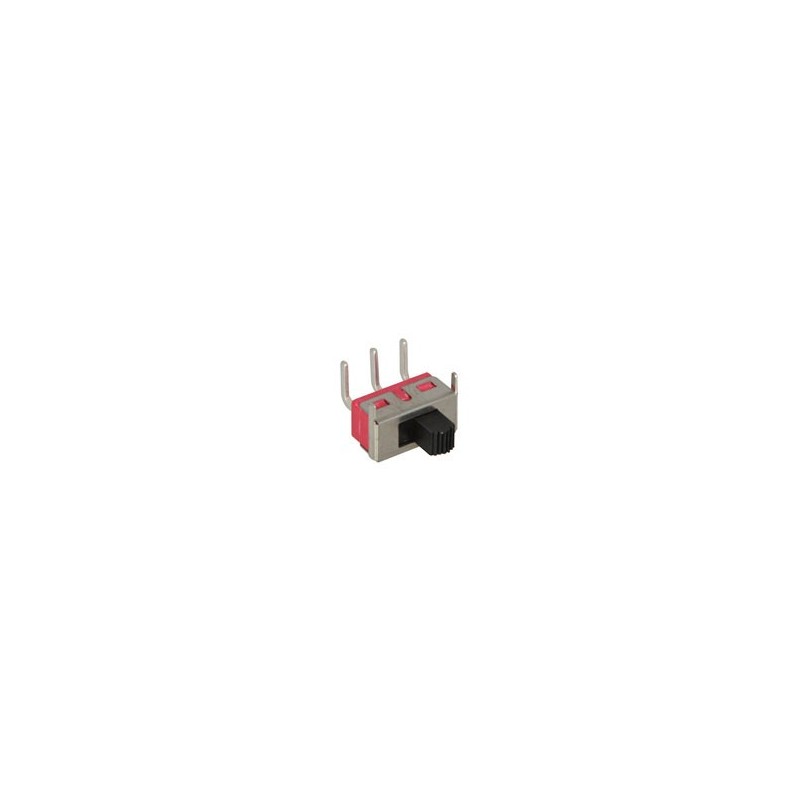

Slide switch 2 positions - 90º
  • Slide switch 2 positions - 90º

Slide switch 2 positions - 90º

: CEL10022
€1.35
Tax included

Slide Switches M5 SERIES

Quantity

Switch type - slide
Stable positions number - 2-position
Contacts configuration - SPDT


AC contacts rating
(at resistance load) - 5 A / 120 VAC
DC contacts rating
(at resistance load) - 5 A / 28 VDC


Switching method - ON-ON
Number of terminals - 3
Leads - for PCB, angled


Body dimensions - 12.7 x 6.1 x 6.35mm
Mounting - THT


Operating temperature - -30...85°C
Knob height  - 5.08mm


Number of positions - 2
Min. insulation resistance - 1000MΩ
Mechanical durability - 30000cycles

CEL10022
