Push switches, miniature

: CEL10019
€0.50
Tax included

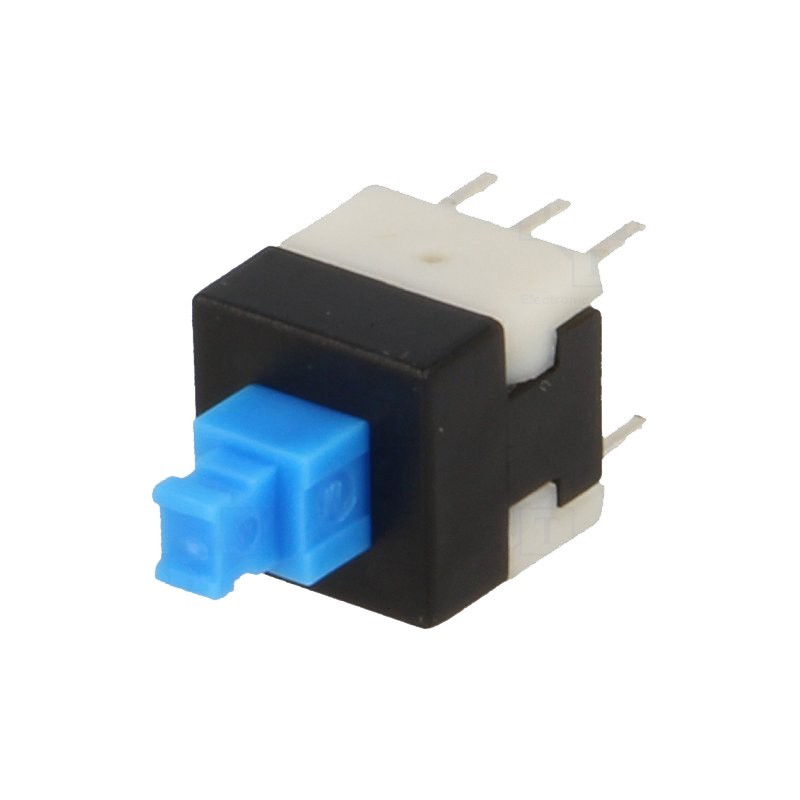

Miniature push switch, 2x(C,NO,NC), 0.1A 30VDC



Quantity

Stable positions number 2-position
DC contacts rating @R 0.1A / 30VDC
(at resistance load)
Mounting THT
Illumination none
Operating Force 1.6N
Body dimensions 8 x 8mm
Button height 13.5mm
(measured from PCB)
Switching method ON-ON
(item in brackets is instantaneous)
Button shape square
Terminal pitch 2.5x6mm
Operating temperature -25...65°C
Leads for PCB, straight
Max. contact resistance: 50mΩ
Mechanical durability 100000cycles
Electrical life 10000cycles
Soldering temperature 245°C / 3 s
Additional information
Gross weight: 0.68 g
