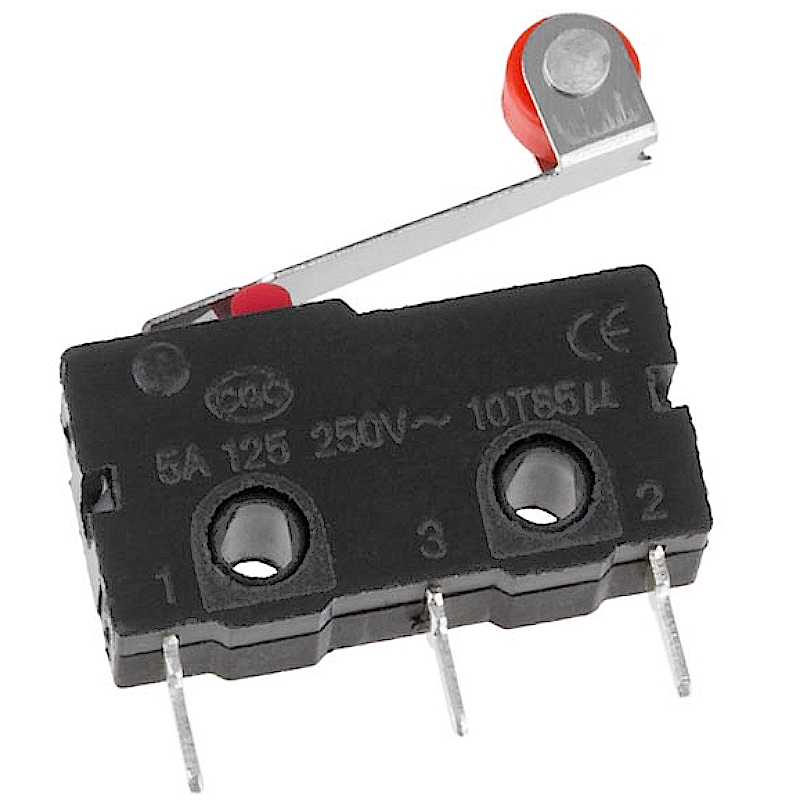

MicroSwitch with Roller

: CEL10060
€0.90
Tax included
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Switch type microswitch
Switches features with lever (with roller)
Contacts configuration  SPDT
AC contacts rating
(at resistance load)		 3 A / 250 VAC
Switching method ON-(ON)
Stable positions number 1-position
Sealing IP40
Leads for soldering
Body dimensions 19.8 x 6.4 x 10.2mm
Mechanical durability 1000000cycles
Operating temperature -25...70°C
Switching torque 1.5N
Lever length 17mm
Electrical life 100000cycles
Max. contact resistance: 30mΩ
Min. insulation resistance 100MΩ
Terminal pitch 7.3mm
Additional information:
  • Gross weight: 2.75 g
CEL10060
