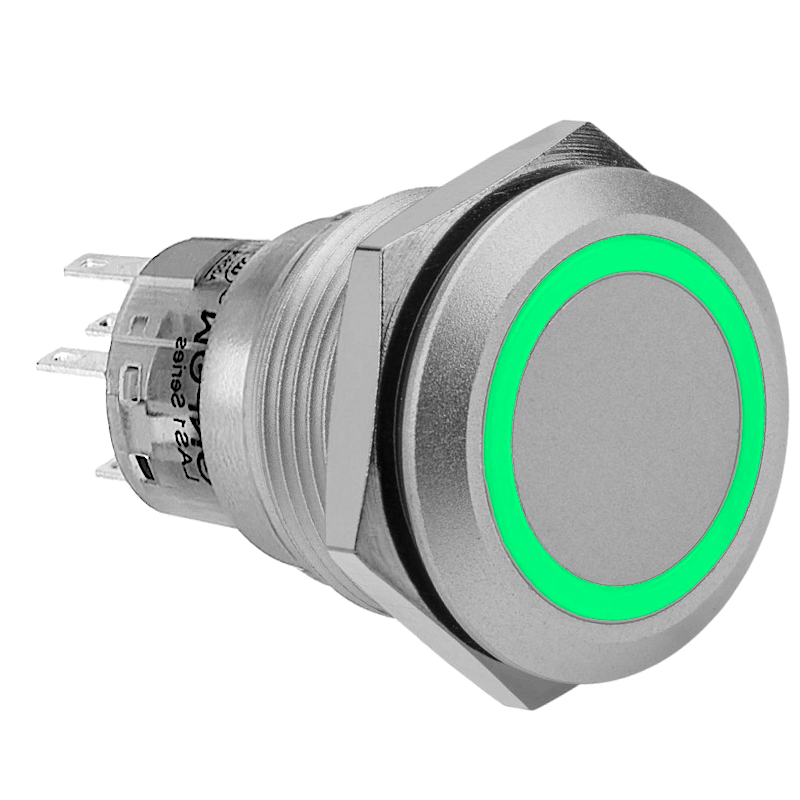

• Metal illuminated pushbutton-Green Ring.

Metal illuminated Switch-Green (12V) Ring

: CEL10010
€12.70
Tax included

water proof switch with illuminator (GREEN LED),  stainless steel. ON-OFF switch (2 positions)

Quantity
Last items in stock

Introduction

This is a water proof switch with illuminator (LED).  It is made by stainless steel with excellent quality.

It comes at green illuminated ring.

Specification

Manufacturer
 ONPOW
Type of switch
 vandal resistant
Number of positions
 2
Contacts configuration
 SPDT
AC contacts rating @R(at resistive load)
 0.5A / 220V AC
DC contacts rating @R(at resistive load)
 1A / 12V DC
IP rating
 IP67
Switching method(the position in bracket indicates momentary position.)
 ON-ON
Illumination
 ring
Backlight colour
 green
Illumination voltage
 12V
Leads
 for soldering
Operating temperature
 -20...55°C
Electrical life
 50000 cycles
Max. contact resistance:
 50mΩ
Operating Force
 5N
Mechanical durability
 1000000 cycles
Button shape
 flat
Mounting hole diameter
 Ø19mm
Body colour
 silver
Body material
 stainless steel
Ring shape
 rounded
Test voltage
 2kV
Contact material
 silver alloy
Stable positions number
 2

CEL10010
