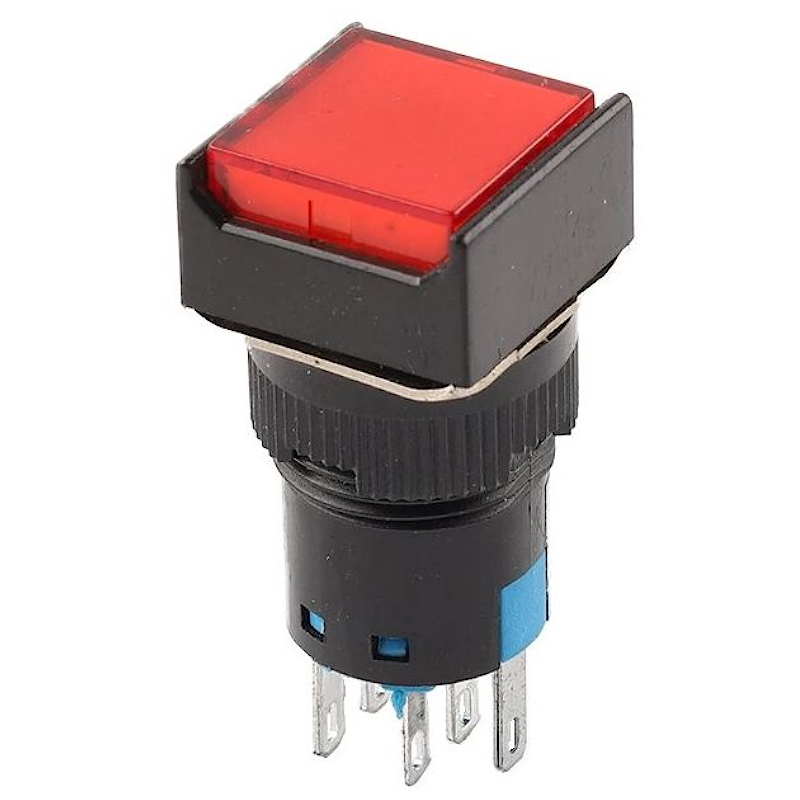

Square 16mm Push Button DPDT Red light 24VDC - LA16F

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Product Information

1. Number of stable positions: 1

2. Product Range: A6 Series

3. Panel Cutout Diameter: 16mm

4. Contact Configuration: DPDT

5. Switch Operation: Momentary

6. Push Button Actuator Style: Square

7. Actuator / Plug Color: RED

8. Max. AC Contact Current: 3A

9. Contact Voltage VAC: 250V

10. Max. DC Contact Current: 5A

11. Contact Voltage VDC: 24V

12. IP Rating: IP40, IP65

13. Switch Mounting: Panel Mount

14. Switching Terminals: Quick Connect, Solder

15. Illumination Color: Red
