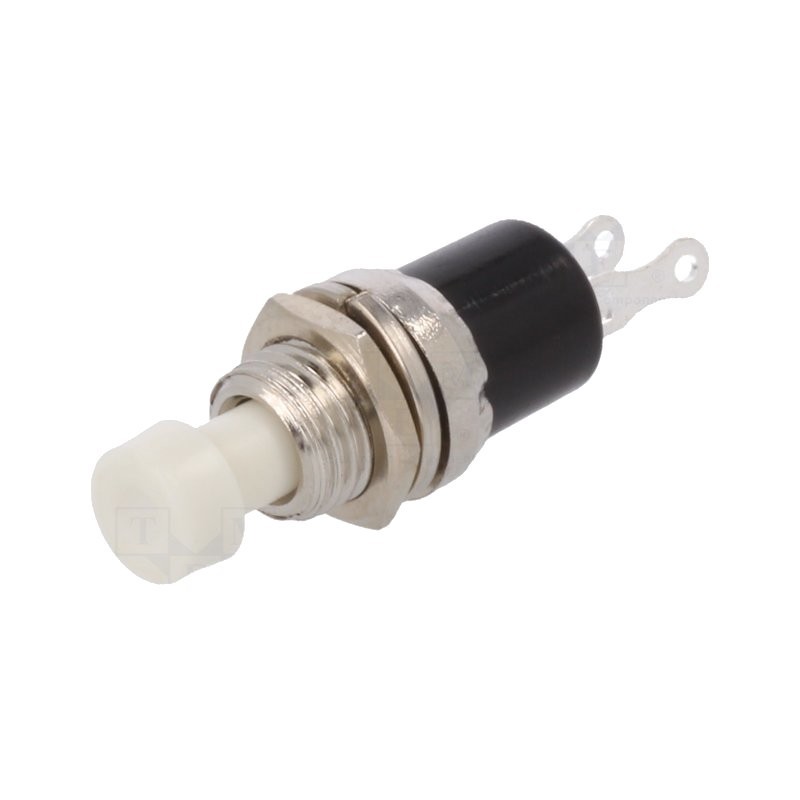

Push Button SPST-NO 1A/250VAC
  • Push Button SPST-NO 1A/250VAC

Push Button SPST-NO 1A/250VAC

: CEL10129
€0.50
Tax included
Select the product color:
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Type of switch push-button
Number of positions 2
Stable positions number 1-position
Contacts configuration SPST-NO
AC contacts rating @R
(at resistance load)		 1A / 250VAC
Illumination none
Leads for soldering
Switching method
(item in brackets is instantaneous)		 OFF-(ON)
Operating temperature -25...70°C
Mounting on panel
Button shape round, prominent
Mounting hole diameter Ø7mm
Max. contact resistance: 20mΩ
Electrical life 50000cycles
Body material metal-plastic
Body dimensions Ø9.2x28.5mm
Height above panel 12mm

Additional information

  • Gross weight: 2.89 g
CEL10129
