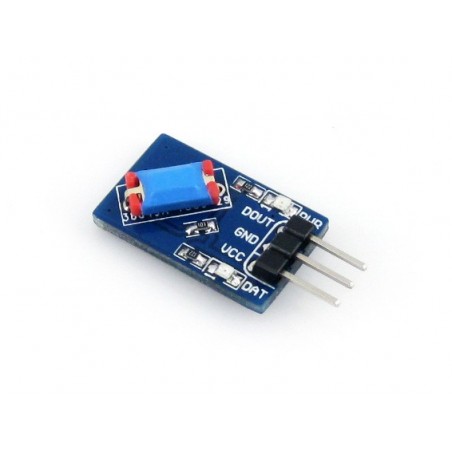

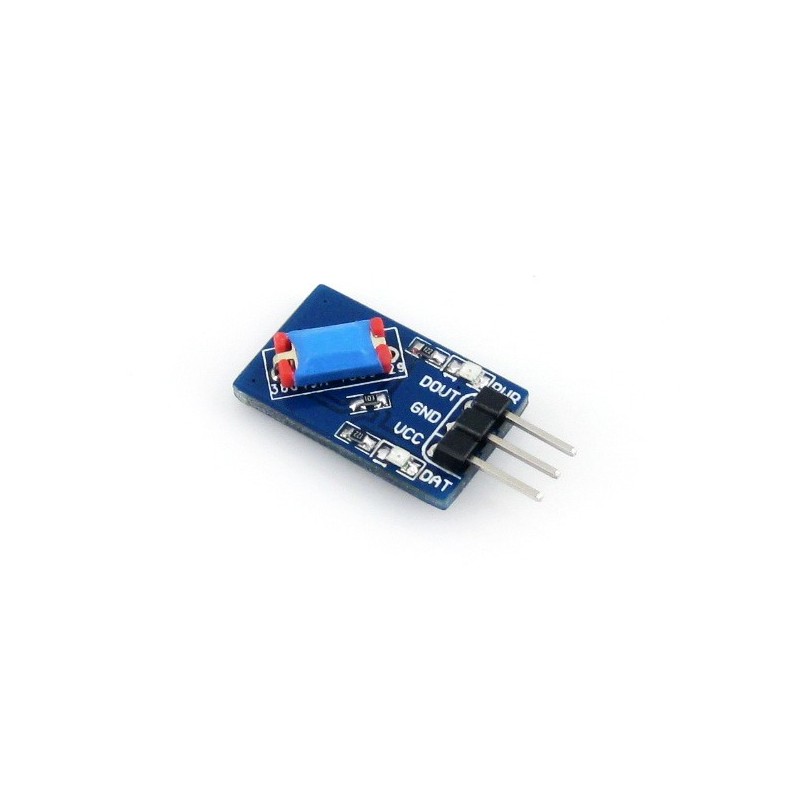

Overview

• Detects shake signal
• Signal output indicator

Specifications

• Dimension: 19.0mm * 16.0mm

Applications

• Shake detection
• Guard alarm
• Smart car
• Electric bricks

How to Use

In the case of working with a MCU:

• VCC ↔ 3.0V ~ 5.5V
• GND ↔ power supply ground
• DOUT ↔ MCU.IO (digital output)

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/Tilt_Sensor
