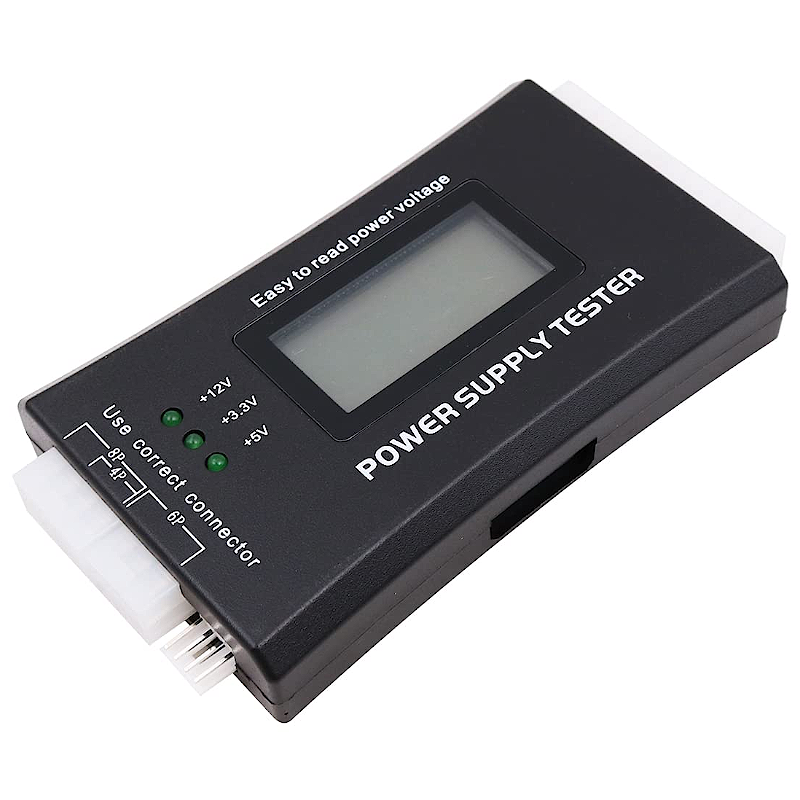

ATX Power Supply Digital LCD Display Tester

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features:

1. 100% Brand new and high quality!

2. The power supply tester is a robust voltage, tester for PC-power supply, ATX . BTX and ITX compliant, power supplies can be tested. LCD's indicate the status of voltage.

3. Suitable for the ambitious hobby user, as well as for a quick functional check in specialized trade.

4. Plug power supply 24 PIN and P4 , P6 or P8 into the corresponding jack of the power test suite.

5. Power on the supply of power, will hear "DuDu" ring , if no flicker then the power supply output voltage is normal.

6. If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a "DuDu" long buzzer ; if the corresponding voltage value or PG flicker too, then the power is failed.

Specifications:

1. Product type: PC 20/24 Pin ITX ATX BTX LCD Power Supply Tester. Interface Type: 20/24pin (ATX-connector).

2. Voltage Test: +12V, -12V, +5V, -5V, +3.3V, 5V Stand by (SB), 12V Power Good

3. Connectors: floppy, HDD, CDROM, SATA, 4pin (P4), 8pin (Dual-CPU), 6pin (PCI-Express)

4. Material: Plastic & Electronics

5. Dimension: approx. 96 x 62 x 20mm

6. Color: Black

Package included:

1 x LCD Power Supply Tester
