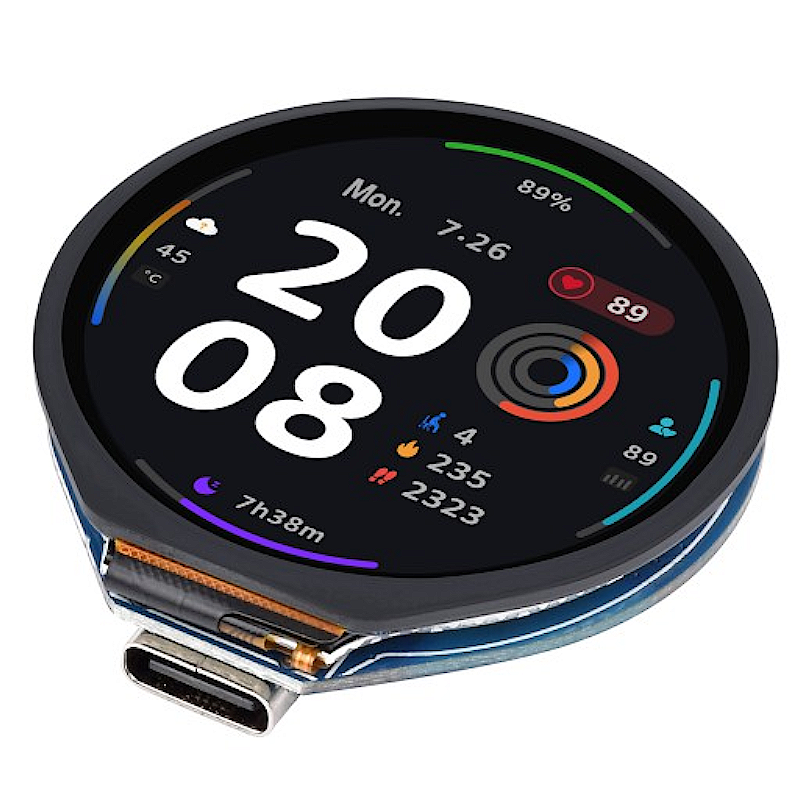

ESP32-S3 Touch LCD 1.28 Roud USB-C w/ Accelerometer and Gyroscope - Waveshare 25098

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

1. Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency

2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with onboard antenna

3. Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory

4. Type-C connector, keeps it up to date, easier to use

5. Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color

6. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture

7. Onboard 3.7V MX1.25 lithium battery recharge/discharge header

8. Adapting 6 × GPIO pins via SH1.0 connector

9. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

10. Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions

Small size, touch more possibilities

Suitable for various smart devices development, can realize human-computer interaction function

What's On Board

1. ESP32-S3R2
   The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM

2. W25Q128JVSIQ
   16MB NOR-Flash

3. CH343P
   USB to UART chip

4. ME6217C33M5G
   800mA output, low dropout, high rejection rate

5. ETA6096
   high-efficiency Lithium battery recharge manager

6. QMI8658
   6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.

7. MX1.25 battery header
   MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

8. USB Type-C connector
   supports USB1.1 hosts and slave devices

9. RESET button

10. BOOT button
    Press it before resetting to enter download mode

Pin definition

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-S3-Touch-LCD-1.28

Package Content

Weight: 0.013 kg

1. ESP32-S3-Touch-LCD-1.28 x1

2. SH1.0 12PIN cable x1
