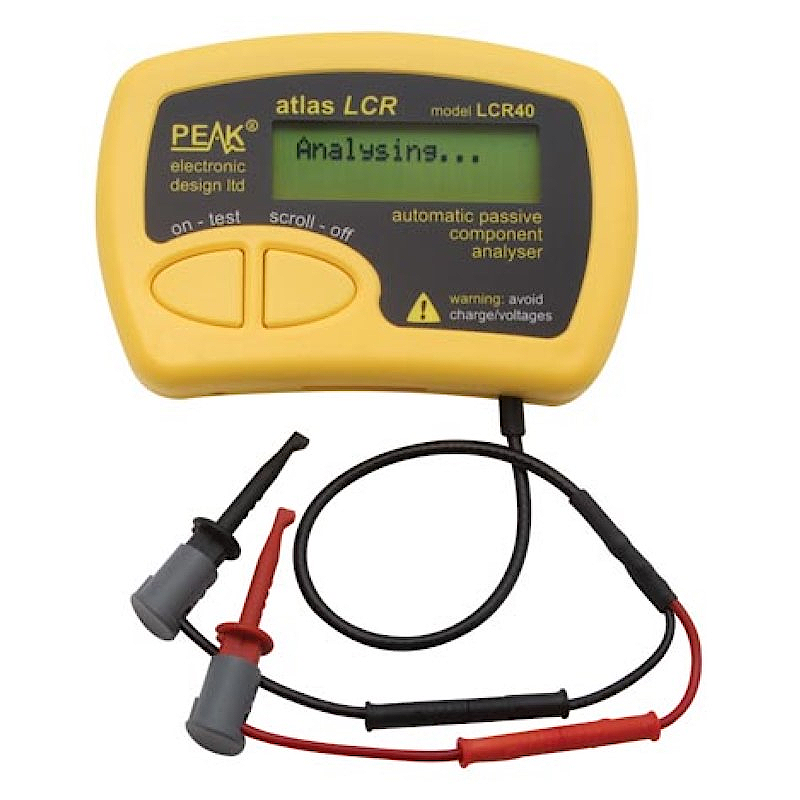

AUTOMATIC PASSIVE COMPONENT ANALYZER - Peak LCR40

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

1. automatic component identification
2. automatic test frequency selection (DC, 1kHz, 15kHz and
   200kHz)
3. delayed or instant analysis (for hands free operation)
4. auto power-off
5. probe and test lead compensation
6. interchangeable probe sets
7. automatic ranging and scaling
8. 1% basic accuracy for resistors
9. 1.5% basic accuracy for inductors and capacitors

Specifications

1. Specification Summary at 20°C (68°F) unless otherwise specified
2. resistance:
   1. range (resistance): 1Ohm ~ 2MOhm
   2. resolution (resistance): 0.3Ohm
   3. accuracy (resistance): ±1.0%±1.2Ohm
3. capacitance:
   1. range (capacitance): 0.5pF ~ 10000µF
   2. resolution (capacitance): 0.2pF
   3. accuracy (capacitance): ±1.5%±1.0pF
4. inductance:
   1. range (inductance): 1µH ~ 10H
   2. resolution (inductance): 0.4µH
   3. accuracy (inductance): ±1.5%±1.6µH
5. peak test voltage across O/C: -1.05V ~ +1.05V
6. peak test current into short circuit: -3.25mA ~ +3.25mA
7. test frequency accuracy: -1.5% ~ +1.5%
8. sine purity: -60dB 3rd harmonic
9. operating temperature range: 10°C ~ 40°C (50F ~ 104F)
10. battery operating voltage: 8.5V ~ 13V
11. Weight per product (nett): 0.098kg (3.5oz)
12. Dimensions per product : 103 x 70 x 20 mm (4.1" x 2.8" x 0.8")
