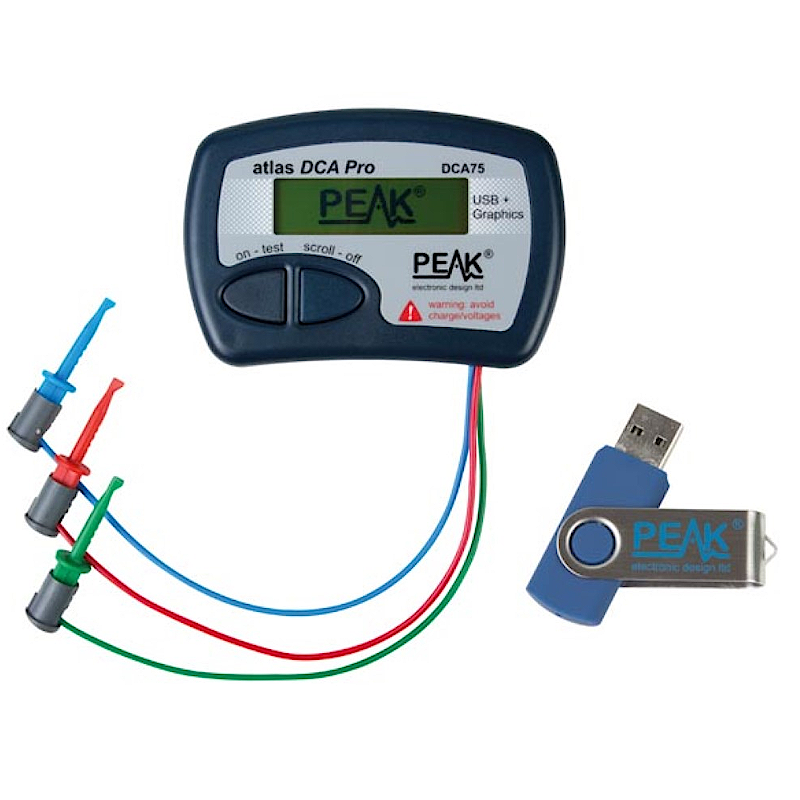

ADVANCED SEMICONDUCTOR ANALYZER with Curve Tracing - Peak DCA75

: FER02054
€199.00
Tax included

The DCA75 is a great instrument for identifying and testing a wide variety of semiconductor components. Just connect any way round!


Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

  1. stand-alone or with a PC
  2. automatic component type identification
  3. automatic pinout identification
  4. special feature identification such as protection diodes and resistor shunts
  5. bipolar transistors: gain and leakage current measurements, silicon and germanium detection
  6. gate threshold measurement for Enhancement Mode MOSFETs
  7. semiconductor forward voltage measurement for diodes, LEDs and
    transistor Base-Emitter junctions
  8. automatic and manual power-off



Specifications

Product basic info
Primary colours Grey
Additional colours          Black
Depth unit 20 mm
Height unit 70 mm
Width unit 103 mm
Weight unit 98 g



Technical data
Maximum peak test current into s/c 12 mA
Maximum peak test voltage across o/s          12 V
Diode specs
  • Test current: 5.0 mA
  • Voltage accuracy: -2% -20 mV to +2% +20 mV
  • Vf for LED identification: 1.50 V - 4.00 V
  • Short circuit threshold: 10 Ohm
SCR/triac specs
  • Gate test current: 4.5 mA
  • Load test current: 5.0 mA
Transistor specs
  • Gain range (Hfe): 4 - 65000
  • Gain accuracy: ± 3 % ± 5 Hfe
  • Vceo test voltage: 2.0 V - 3.0 V
  • Vbe accuracy: -2 % -20 mV to +2 % +20 mV
  • VBE for Darlington (shunted): 0.95 V - 1.80 V (0.75 V - 1.80 V)
  • Base-emitter shunt threshold: 50 kOhm - 70 kOhm
  • BJT collector test current: 2.45 mA - 2.55 mA
  • BJT acceptable leakage: 0.7 mA
  • MOSFET:
    • Gate threshold range: 0.1 V - 5.0 V
    • Threshold accuracy: -2 % -20 mV to +2 % +20 mV
    • Drain test current: 2.45 mA - 2.55 mA
    • Gate resistance: 8 kOhm
  • Depletion drain test current: 4.5 mA
  • JFET drain-source test current: 0.5 mA - 5.5 mA



Power supply
Batteries included                     No
Number of batteries 1
Battery voltage rating 1.5 V
Battery composition Alkaline
Battery IEC size AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
