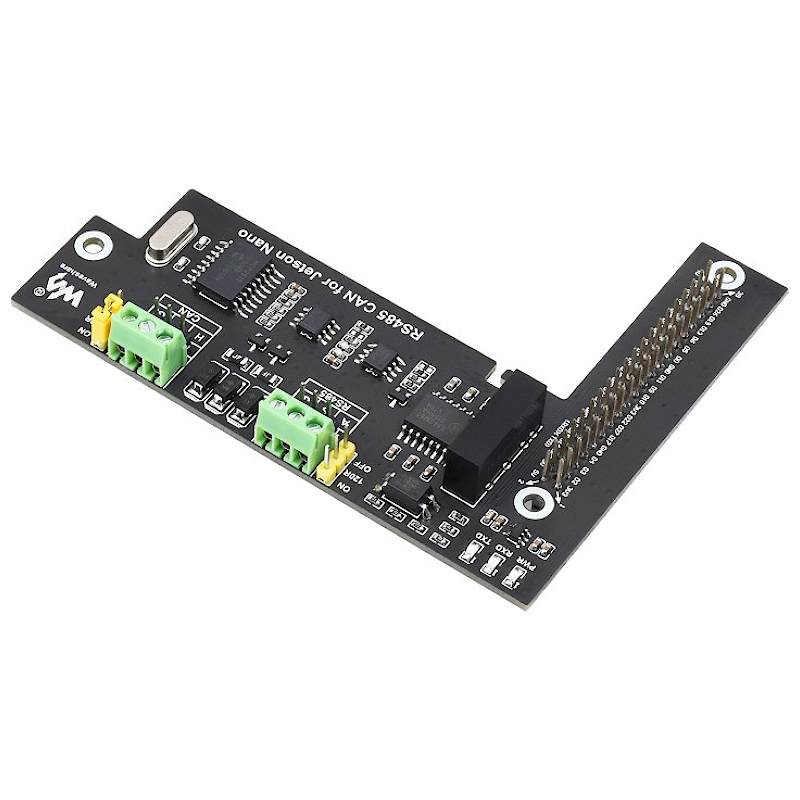

RS485 CAN Expansion Board for Jetson Nano - Waveshare 22026

: COM08007
€23.50
Tax included

RS485 CAN Expansion Board for Jetson Nano

If you want to know more about this product, please check its Wiki Page.

NOTE: Jetson Nano board is not included.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

RS485 CAN Expansion Board Designed for Jetson Nano



Features at a glance

  1. Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano

  2. Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver

  3. Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485

  4. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic

  5. Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference

  6. Reserved control pins, allows to work with other control boards

  7. Comes with development resources and manual (examples in python)



Specifications

CAN Controller

MCP2515

CAN Transceiver

SIT65HVD230DR

RS485 Transceiver

SP3485

Operating Voltage

3.3V

Mounting hole size

3.0mm

Dimension

100 × 79mm




Connect to Jetson Nano


4GB Version





Features RS485 and CAN Function





Isolation Circuit Design, Safer Communication

Onboard SM24CANB Transient Voltage Suppressor(TVS), Prevent The Damage Of Static electricity, Surge Voltage and Transient Peak Voltage, Making RS485 Communication More Stable And Safer




What's On Board


  1. CAN Controller - MCP2515

  2. CAN Transceiver - SIT65HVD230DR

  3. RS485 Transceiver - SP3485

  4. Power Isolator - B0505LS

  1. Digital Isolator Chip - ADUM1412

  2. Optocoupler Isolation Chip - PC817X3CSP9F

  3. TVS (Transient Voltage Suppressor)

  4. RXD & TXD Indicator

  5. Power Indicator

  6. Power Chip - RT9193-33



Pin Definition




Outline dimensions




Resources & Services


WIKI: www.waveshare.com/wiki/RS485_CAN_for_Jetson_Nano



Package Content

Weight: 0.046 kg

  1. RS485 CAN for Jetson Nano x1

  2. Screws pack x1

1RS485-CAN-for-Jetson-Nano-1_220.jpg 2Jetson-Nano-Ex-Screws_93.jpg
