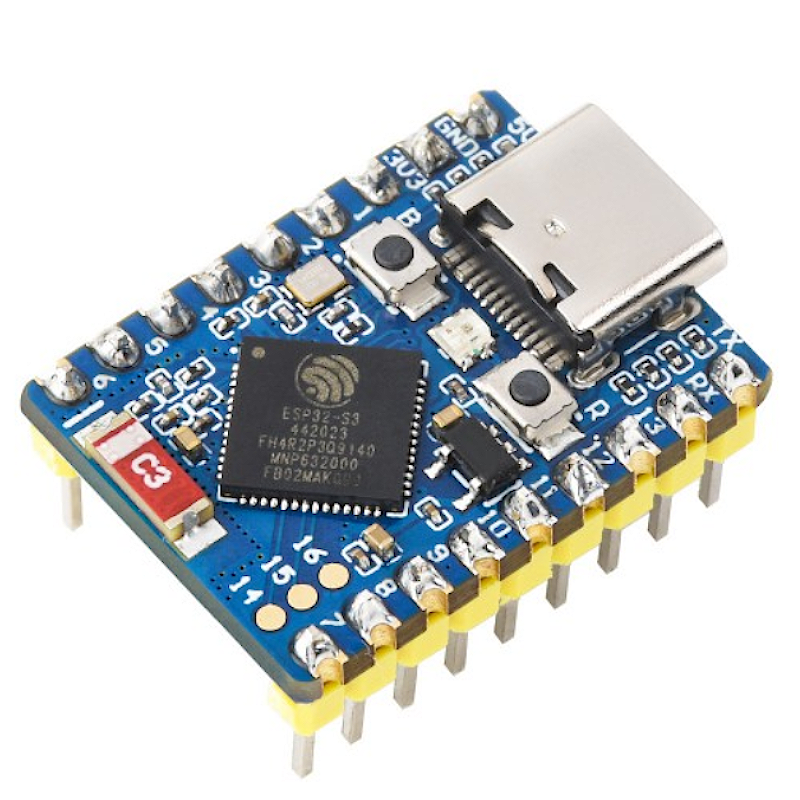

ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz USC-C (soldered header) - Waveshare 25517
ESP32-S3-Zero comes with an onboard Type-C USB connector, which exposes most of the unused pins in a small form factor. It adopts ESP32-FH4R2 as a system chip (SoC) that integrates low-power WiFi and BLE5 with 4MB Flash and 2MB PSRAM. In addition, there is a hardware encryption accelerator, RNG, HMAC, and Digital Signature modules to meet the safety requirements of IoT and provide peripheral interfaces
If you want to know more about this product, please check the Wiki Page.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Board specifications
-
Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
-
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
-
Built in 512KB of SRAM and 384KB ROM, onboard 4MB Flash memory and 2MB PSRAM
-
Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
-
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
-
Integrated with USB serial port full-speed controller, 34 × GPIO pins allows flexibly configuring pin functions
-
4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.
Support C/C++, MicroPython
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
What's On Board
-
ESP32-S3FH4R2 dual-core processor
up to 240MHz operating frequency -
USB Type-C Port
-
ME6217C33M5G
low dropout LDO, 800mA (Max) -
WS2812 RGB LED
-
2.4G ceramic antenna
-
BOOT button
Press it and then press the RESET button to enter download mode -
RESET button
-
ESP32-S3FH4R2 pins
Pin definition
Product Show
Outline dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/ESP32-S3-Zero
Package Content
- ESP32-S3-Zero with pre-soldered header x1
