micro:GamePad - GamePad for micro:bit (V4.0)

: PCO07048
€21.90
Tax included

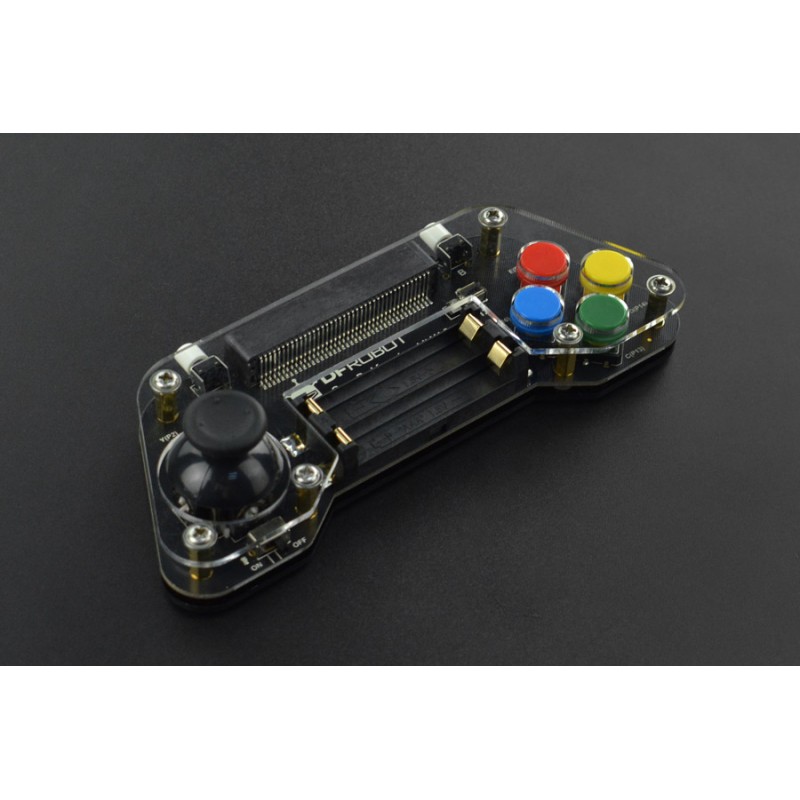

GamePad for micro:bit V4.0 is a micro:bit gamepad with a joystick. It adopts a high-precision three-axis analog amount joystick. There are 7 programmable buttons, which means you can explore more interesting functions and more flexible controls.

If you want to know more about this product, please check the Wiki Page.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

GamePad for micro:bit V4.0 is a micro:bit gamepad with a joystick. It adopts a high-precision three-axis analog amount joystick. The combination of joystick and gamepad allows you to control Maqueen's direction and speed at the same time. Moreover, there are 7 programmable buttons, which means you can explore more interesting functions and more flexible controls.

In the latest V4.0 product, we have put the external battery box to onboard PCB, which is more convenient to use.

Features

  1. two axes(X-Y) programmable analog joystick, which can control the direction and speed of the maqueen at the same time.
  2. Up to 7 programmable keys, flexible and convenient
  3. Vibrating motor, LED output equipment
  4. Acrylic protection up and down, safe to use and comfortable to handle

Specification

  1. Power: 3V DC (2 x AAA batteries)
  2. Joystick: 2 axis analog (X: P1 Y: P2) 1 axis digital (Z: P8)
  3. Onboard LED and vibration motor: P12
  4. Keys: A(A), B(B), C(P13), D(P14), E(P15), F(P16), Z(P8)
  5. Dimension: 5.83 x 2.24inch / 148 x 57 mm

Documents

Shipping List

  1. GamePad for microbit x1
PCO07048
