Multi-Function Shield For Arduino UNO R3 Leonardo R3 Mega 2560

: ARD03171
€8.90
Tax included

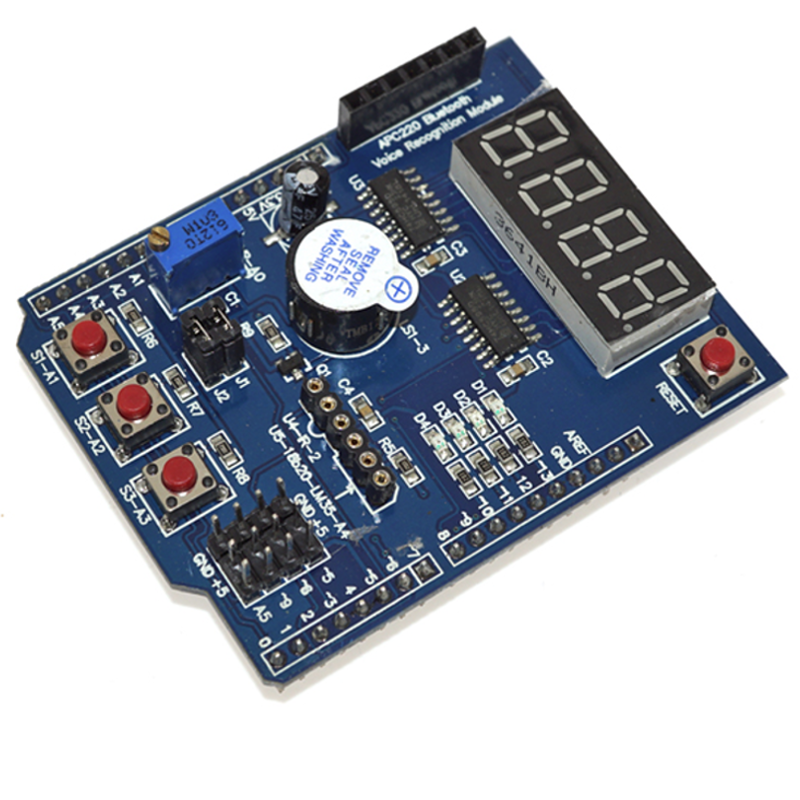

 Multifunctional shield for Arduino. It incorporates many sensors and components to help build and test prototypes without confusing wires.

Suitable for Arduino UNO, Arduino Leonardo, Arduino Mega and other similar microcontrollers

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Multifunctional shield for Arduino. It incorporates many sensors and components to help build and test prototypes without confusing wires, and because the components are soldered, it ensures good contact with them. All you have to do is plug the adapter into the microcontroller and you can use it, no additional soldering is required.

Technical specs:

  1.  4 digit 7-segment LED display module driven by two serial 74HC595’s
  2.  4 x surface mount LED’s in a parallel configuration
  3.  10K adjustable precision potentiometer
  4.  3 x Independent push buttons
  5.  Piezo buzzer
  6.  DS18B20 temperature sensor interface
  7.  LM35 temperature sensor interface
  8.  Infrared receiver interface
  9.  Serial interface header for convenient connection to serial modules such as
  10.  Bluetooth, wireless interface, voice module, a voice recognition module etc



ARD03171
