Input Shield For Arduino

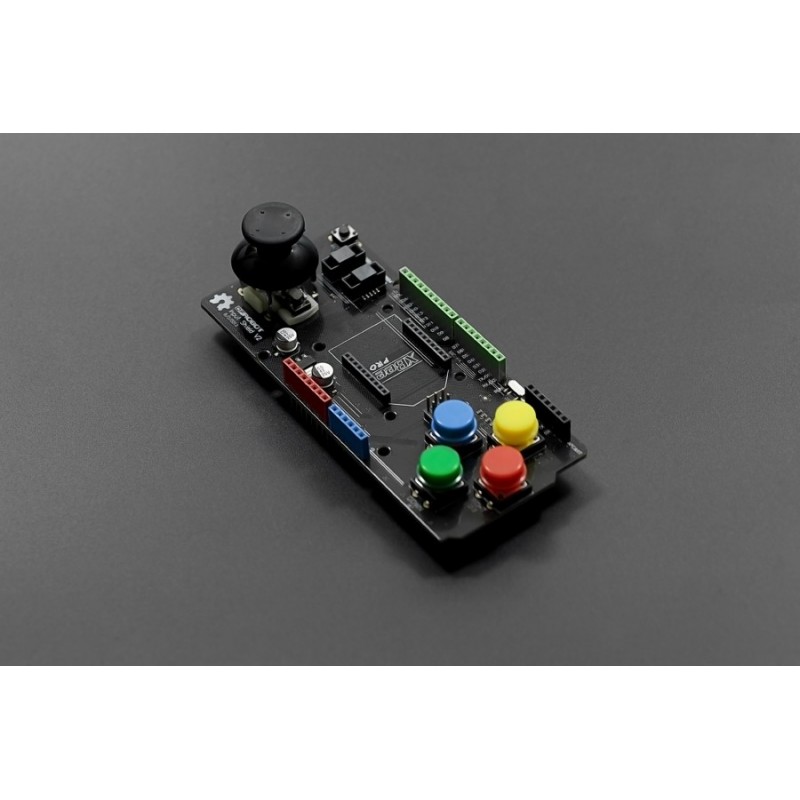

The upgraded Arduino Input Shield includes a two axis mini joystick (with moment switch) as well as four colored push buttons(Red,Yellow,Blue,Green). The reserved APC220 Radio Data Module(SKU:TEL0005) interface and the Xbee interface is deisgned to facilitate the realization of wireless rocker button controller. The shield can be easily stacked on top of your Arduino boards. It can also connect with OLED2864 & OLED9664.

• Dual axis mini joystick
• Connects to your Arduino using male to male pin headers
• Comes with 2 colored push buttons
• The use of imported high-quality potentiometers and the PS button rocker. The rocker output an analog signal is to achieve vertical and horizontal control, which is attached to four keys at the same time. It also has two great circle button caps (cap color random round keys), a rocker button and a reset button.
• The use of stack design is so that the plug can easily on Arduino Duemilanove or DFRduino Romeo.
• The reserved APC220/Bluetooth module interface is to facilitate the realization of wireless rocker button controller.
• The remaining unused ports are extended out of standby.

• up                 D8
• down             A1
• left                D9
• right              D12
• stick button    A0
• level_stick      A3
• vertical_stick  A2

• Product Wiki Page
• Schematic
• sample code
