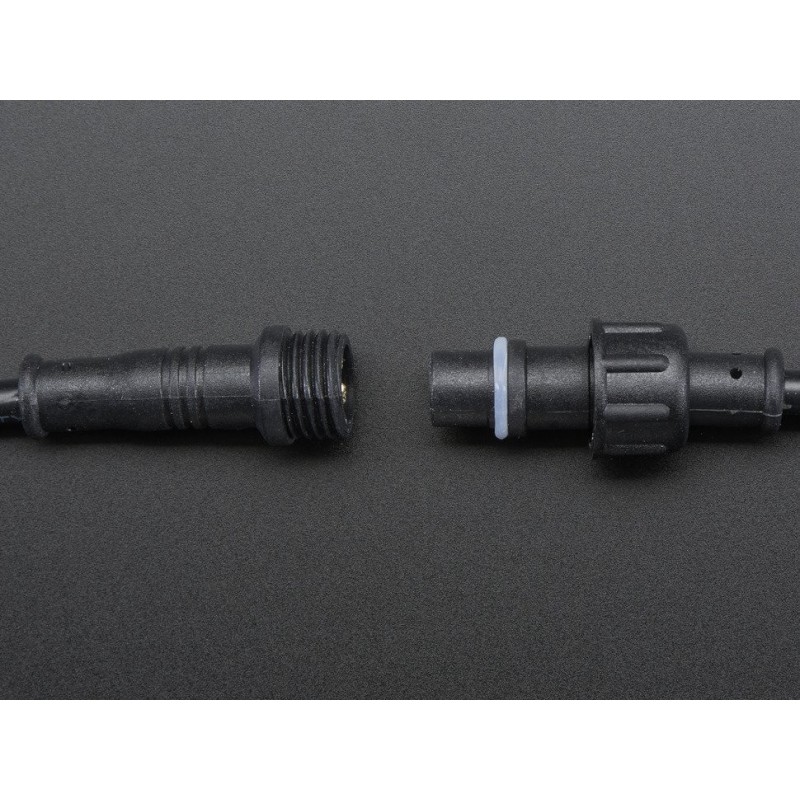

Waterproof Polarized 4-Wire Cable Set
: CON03028
€3.50
Tax included
-
DESCRIPTION
Outdoor enthusiasts rejoice! We now have very useful 4-wire polarized cable sets in a waterproof variety. These cable sets are ideal for projects that must weather the weather: dust, water, rain, snow, tornado (not volcano proof!). Each cable has 4 color-coded conductors (red, black, white yellow) that match between the sides, for easy wiring and connectors are polarized so you can't plug them in wrong. They are a little bulky the o-ring and removable over-screw. The o-ring is what makes the waterproof seal, and the over-screw keeps the two halves connected solidly
Comes as a set of two cables - one plug and one jack. The total length of the connected cables is 16" (40cm). -
TECHNICAL DETAILS
- Each half has a 7" long cable (not including the connector part)
- 16" total length when plugged together
- 4-pin polarized connector with 22AWG wires
- Rated for up to 24VDC, up to 4A per connector
- 0.58" (15mm) diameter at widest point
- 0.2" (5mm) cable diameter
- 20 grams per set
- IP67 rated
- PVC Connector & Jacket
CON03028
