pocket oscilloscope DSO Nano V3
Analog Broadband: 0 ~ 200kHz,
Max. Input Voltage: 80Vpp(x1 probe)400Vpp(x10 probe)
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.

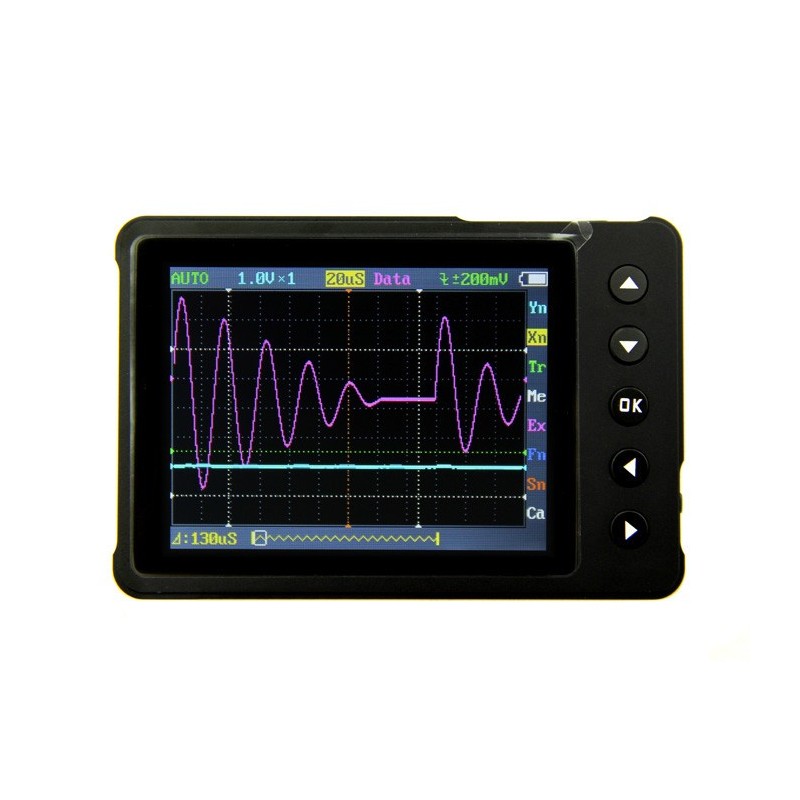

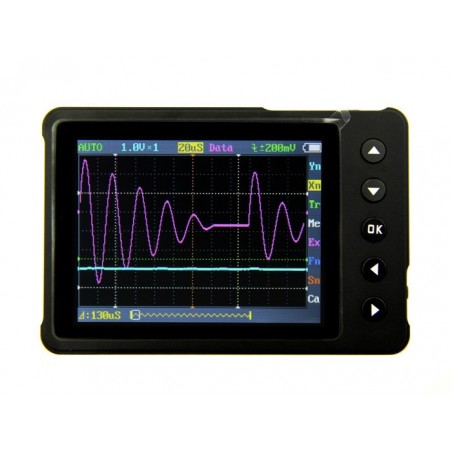

The DSO Nano V3 is a pocket-size compatible 32bit digital storage oscilloscope. Based on ARM -M3, it’s equipped with 320*240 color display, SD card, USB port and recharging function. It’s compact, simple to operate; meets the basic demands of school lab, electric furniture repairment and electric engineering.
This is a updated and cool version of DSO Nano which features a firmware and a embedded 2 Mbyte storage chip instead of micro SD card slot. The documents of this version in detail is on this page, please refer to it.
NOTE:For DSO Nano with SD card slot, it is not available now. If you get one from our distributers’ stock, please click here to check the document.
Updates in v3:
- V3 used a new firmware with user-friendly interface, easier to operate
- Upgraded firmware via virtual disk
- Added build-in 2Mbyte storage chip instead of micro SD card slot
- Black metal shell
Features
- Portable and lightweight
- Color display
- Waveform storage and playback
- 6 triggering modes
- 200Khz Analog Bandwidth
- Complete measurement markers and signal characteristics
- Built-in Signal Generator
- Accessories available
- Open Source
Specifications
- Display: 2.8’’ color TFT LCD
- Display Resolution: 320x240 Display Colors 65K
- Analog Broadband: 0 ~ 200kHz
- Max. Sampling Rate: 1Msps 12 bit
- Sampling Storage Depth: 4096 points
- Transverse Sensitivity: 1uS/Div~10S/Div(1-2-5 stepping)
- Vertical Sensitivity: 10mv/Div~10V/Div(x1 probe) 0.5V/Div~10V/Div(x10 probe)
- Input Resistance: >500KΩ
- Max. Input Voltage: 80Vpp(x1 probe)400Vpp(x10 probe)
- Coupling Mode: DC
- Triggering Mode: Auto,Normal,Single,None
- Auto Measurement: Frequency, cycle, duty, Vpp, Vram, Vavg, DC voltage; Vertical Precise Measurement Cursor; Horizontal Precise Measurement Cursor; Rising/Falling Edge Trigger; Triggering Cursor; Triggering Sensitivity Cursor; Hold/Run
- Inbuilt Test Signal: 10Hz~1MHz(1-2-5 stepping)
- Waveform Storage: build-in 2Mbyte
- PC Connection Interface: Connection through USB
- Recharging Method: Recharging through USB interface
- Dimensions:105mm x 53mm x 8mm
