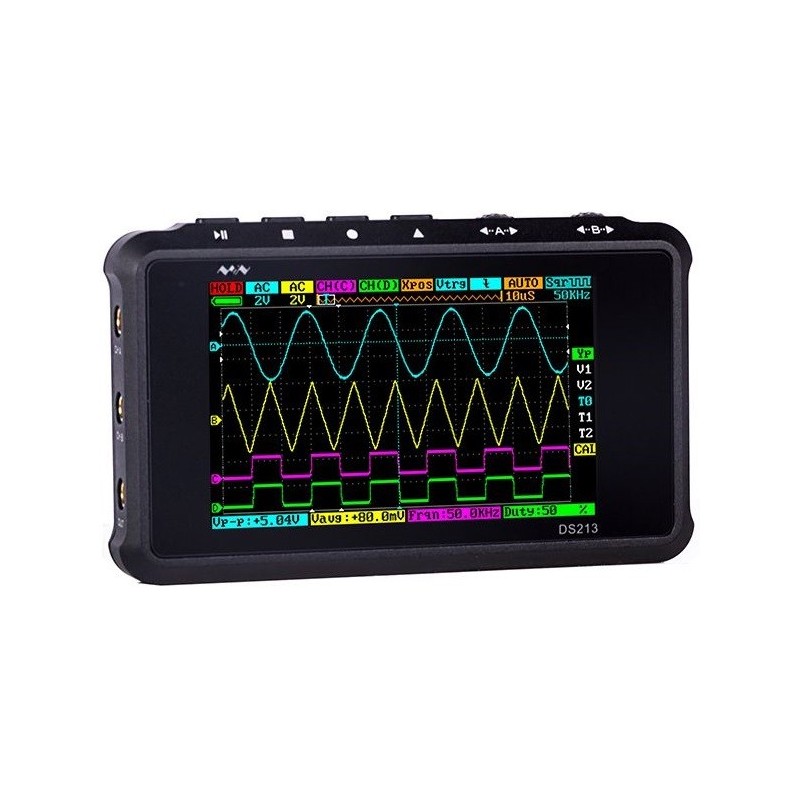

MiniDSO DS213 Nano 4 Channel 100MSa/s
The DS213 is a 5-track 4-wire universal electronic engineering task digital storage oscilloscope based on the ARM Cortex M3 core.Using the FPGA's external ADC's management control and data cache mode of operation, it provides four application partitions for loading and upgrading up to four different application firmware.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
The DS213 is a 5-track 4-wire universal electronic engineering task digital storage oscilloscope based on the ARM Cortex M3 core.Using the FPGA's external ADC's management control and data cache mode of operation, it provides four application partitions for loading and upgrading up to four different application firmware. With a built-in 8MB USB stick, users can store waveforms and upgrade system firmware.
Features
- Waveform storage and playback
- Build-in 8MB USB .
- 5-track-4-channel
- color display
- High sampling rate
Part List
- SainSmart DSO213 Oscilloscope
- X10 Probe Analyzer ×1
- X1 Probe Analyzer ×1
- Instructions x1
- Hex Key ×1
Sample photo
Parameter | Value |
---|---|
Max. sampling rate | 100M Sa/s |
Analog channel signal bandwidth | 15M |
Analog channel standard input impedance | 1MΩ |
Analog channel input coupling | AC/DC |
Analog channel maximum input voltage | ±40V (×1 Probe) |
±400V (×10 Probe) | |
Horizontal scan time base range | 100nS/Div-1S/Div(1-2-5 Step) |
Analog channel input sensitivity range | 10mV/Div-10V/Div(1-2-5 Step) |
Digital channel standard input impedance | 100KΩ |
Digital channel maximum input voltage | 5V |
Trigger type | Edge trigger, Pulse width trigger |
Trigger mode | Auto,Normal,Single,Slow |
Measurement signal | Signal frequency, period, duty cycle, positive pulse width, negative pulse width, voltage peak-to-peak value, effective value, average value, maximum value, minimum value |
Signal source | 0Hz ~ 8MHz square wave, 10Hz ~ 20KHz sine wave / triangle wave / sawtooth wave |
Battery | Built-in 1000mAh lithium battery, charging with Micro USB port |
Dispaly | Color TFT LCD display (resolution 240×400) |
Storage | Built-in U disk storage capacity of 8MB, can store waveform data and waveform images |
