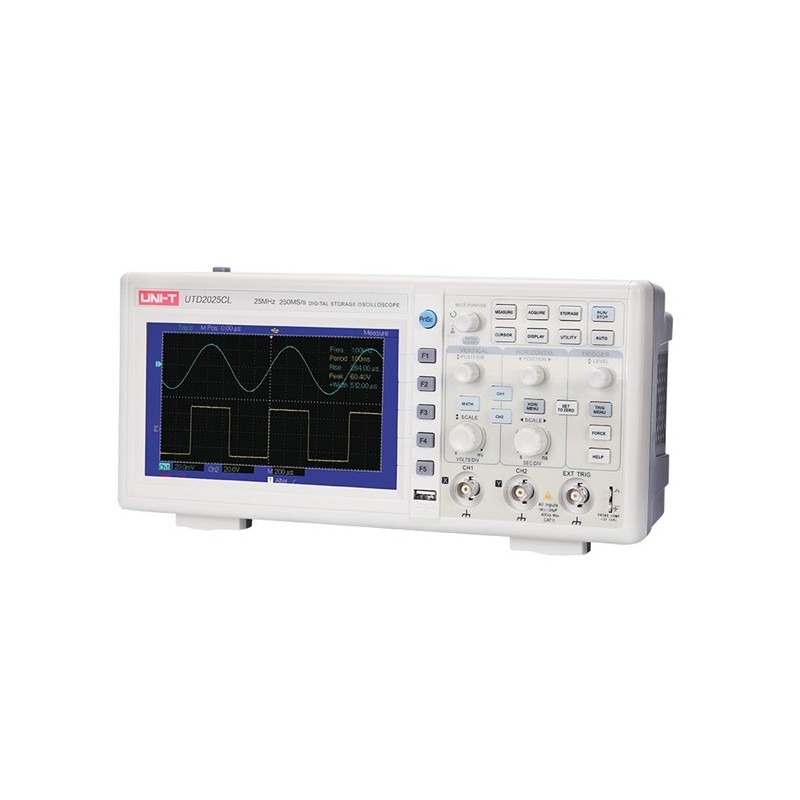

Oscilloscope UNI-T UTD2025CL
UTD2000CL series is an economical bench-type digital storage oscilloscope, meeting needs of basic measurements. The simple and clear front panel design provides convenient operations for users.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
The UTD2000L series desktop digital storage oscilloscope offers 2 channels and a sampling rate of 250 MS/s, which is sufficient enough for 25 MHz bandwidth. With USB OTG, you can store the measured values on a USB flash drive. A simple front panel with clearly labeled functions for basic operations, scale and location of individual channels allows you to use habits while using traditional tools, so you can use the device without having to learn anything, or work with it for a long time.
Specifications | ||
Model | UTD2025CL | |
Bandwidth | 25MHz | |
Channels | 2 | |
Sampling rate | 250MS/s | |
Rise time | <14ns | |
Memory depth | 25kpts | |
Waveform capture rate | >2, 000wfms/s | |
Vertical scale (V/div) | 1mV/div〜20V/div | |
Time base scale (s/div) | 10ns/div〜50s/div | |
Storage methods | Setup, waveform, bitmap |
Trigger specifications | ||
Frequency counter | 6 bits | |
Trigger types | Edge, pulse width, video, alternate | |
Level range | Internal | ±8div from screen center |
EXT | ±3V | |
Holdoff range | 80ns〜1.5s | |
Edge trigger types | Rise, fall, rise & fall | |
Interfaces | Pass/Fail (UTD2025CL), USB-OTG |
General Characteristics | ||
Power | 100V〜240V ACrms, 50Hz/60Hz | |
Display | 7-inch TFT LCD, WVGA (400x240) | |
Product color | White and grey | |
Product net weight | 2.2kg | |
Product size | 306mm x 147mm x 122mm | |
Standard accessories | Probe x 2 (1x, 10x switchable), power cord, USB interface cable, PC software CD | |
Standard individual packing | Carton box | |
Standard quantity per carton | 2pcs | |
Standard carton measurement | 450mm x 420mm x 280mm | |
Standard carton gross weight | 7.1kg |
MANUFACTURER
UNI-TREND
