USB Current Voltage Detector
  • USB Current Voltage Detector
  • USB Current Voltage Detector
  • USB Current Voltage Detector
  • USB Current Voltage Detector

USB Current Voltage Detector

: LCD01028
€15.00
Tax included

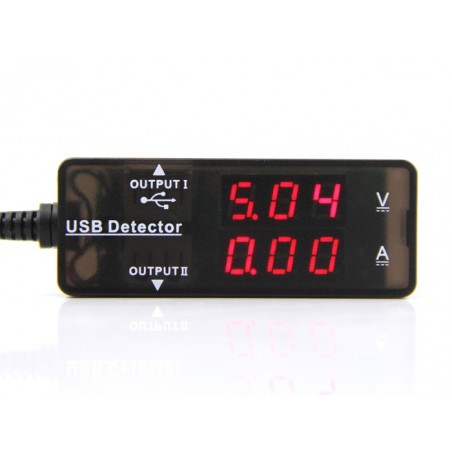

Small size, simple and practical tool that can detect USB's voltage and current.

Quantity
Out-of-Stock


It doesn't need any external power, and plug and play. And it not only voltage and current detect, but also a USB hub.
As a common USB detecter, It has large detection range, 3.2v to 10v Voltage and 0A to 3A current.

Feature:
Simple and practical
Small size
Convenient to carry
No external power
Plug and play

Specification:
Min supply voltage: +3.2 V
Max supply voltage: +10 V
Measuring Range:DC 3.2-10V
Operating temperature: -10 to 65° c
Operating Humidity: 10 ~ 80% (no condensing)
Working pressure: 80 ~ 106kPa
Display Type:Digital Only
Operating Temperature:-10 to 65° c
Brand Name:DC Voltmeter Ammeter
Accuracy Class:1% (± 2 digit)
Dimensions:69 x 26 x 19mm
Model Number:YB26VA 2in1 DC Volt Amp Meter
USB extension cable:≥ 120mm
Display:0.28 "LED red
Measuring rate:≥ 500mS / times
Operating Current:<20mA
Measure current:3A
Test Current: 0 ~ 3A (Max 10A, but the error is big, cannot work for a long time)

LCD01028
