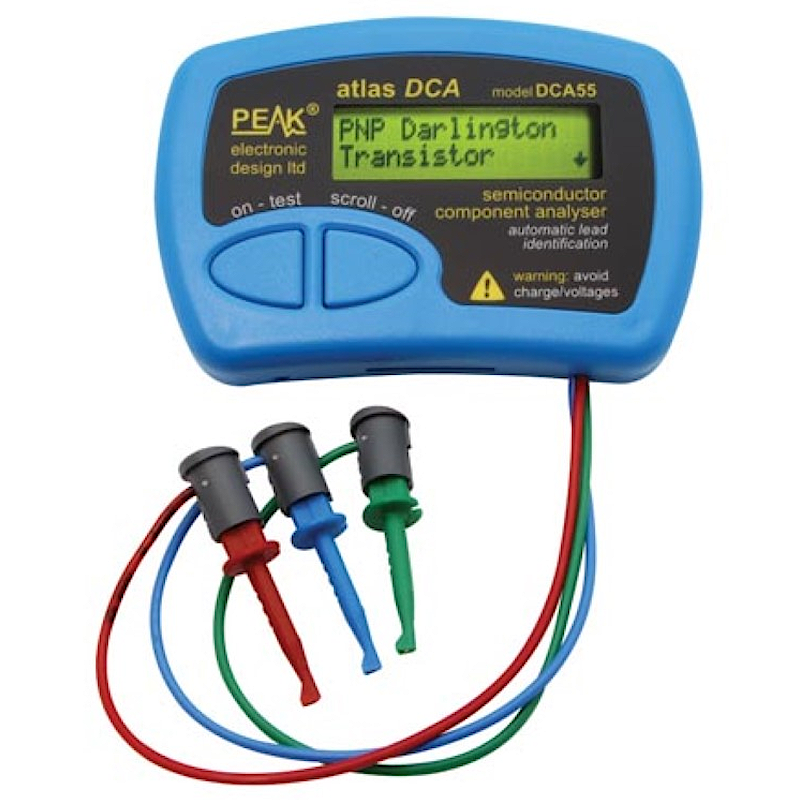

SEMICONDUCTOR COMPONENT ANALYZER - Peak DCA55

: FER02053
€89.00
Tax included

Enable Universal test probes connect to semiconductor devices in any configuration and present the device type, device pin-out, internal features and parameters. Support components include the bipolar transistor, darlington transistors, MOSFETs, JFETs, diodes, and LEDs (2 and 3 leads) . Power is automatically turned on at the start of an analysis and then automatically turned off if inactive for more than 30 seconds. The Atlas DCA Package The Peak Atlas DCA is supplied complete with a long life battery, universal test probes and a comprehensive illustrated user guide.


Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

  1. automatic component type identification
  2. automatic pinout identification
  3. special feature identification such as protection diodes and resistor shunts
  4. bipolar transistors: gain and leakage current measurements, silicon and germanium detection
  5. gate threshold measurement for Enhancement Mode MOSFETs
  6. semiconductor forward voltage measurement for diodes, LEDs and
    transistor Base-Emitter junctions
  7. automatic and manual power-off


Specifications

Product basic info
Primary colours Black
Additional colours        Blue
Depth unit 20 mm
Height unit 70 mm
Width unit 103 cm
Weight unit 98 g



Technical data
Maximum peak test current into s/c 5.5 mA
Maximum peak test voltage across o/s          5.1 V
Diode specs
  • Test current: 5.0 mA
  • Voltage accuracy: -2% -20 mV to +2% +20 mV
  • Vf for LED identification: 1.50 V - 4.00 V
  • Short circuit threshold: 10 Ohm
SCR/triac specs
  • Gate test current: 4.5 mA
  • Load test current: 5.0 mA
Transistor specs
  • Gain range (Hfe): 4 - 65000
  • Gain accuracy: ± 3 % ± 5 Hfe
  • Vceo test voltage: 2.0 V - 3.0 V
  • Vbe accuracy: -2 % -20 mV to +2 % +20 mV
  • VBE for Darlington (shunted): 0.95 V - 1.80 V (0.75 V - 1.80 V)
  • Base-emitter shunt threshold: 50 kOhm - 70 kOhm
  • BJT collector test current: 2.45 mA - 2.55 mA
  • BJT acceptable leakage: 0.7 mA
  • MOSFET:
    • Gate threshold range: 0.1 V - 5.0 V
    • Threshold accuracy: -2 % -20 mV to +2 % +20 mV
    • Drain test current: 2.45 mA - 2.55 mA
    • Gate resistance: 8 kOhm
  • Depletion drain test current: 4.5 mA
  • JFET drain-source test current: 0.5 mA - 5.5 mA



Environmental data
Operating temperature range           0-50 °C



Power supply
Batteries included No
Number of batteries 1
Battery voltage rating    1.5 V
Battery composition Alkaline
Battery IEC size AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
