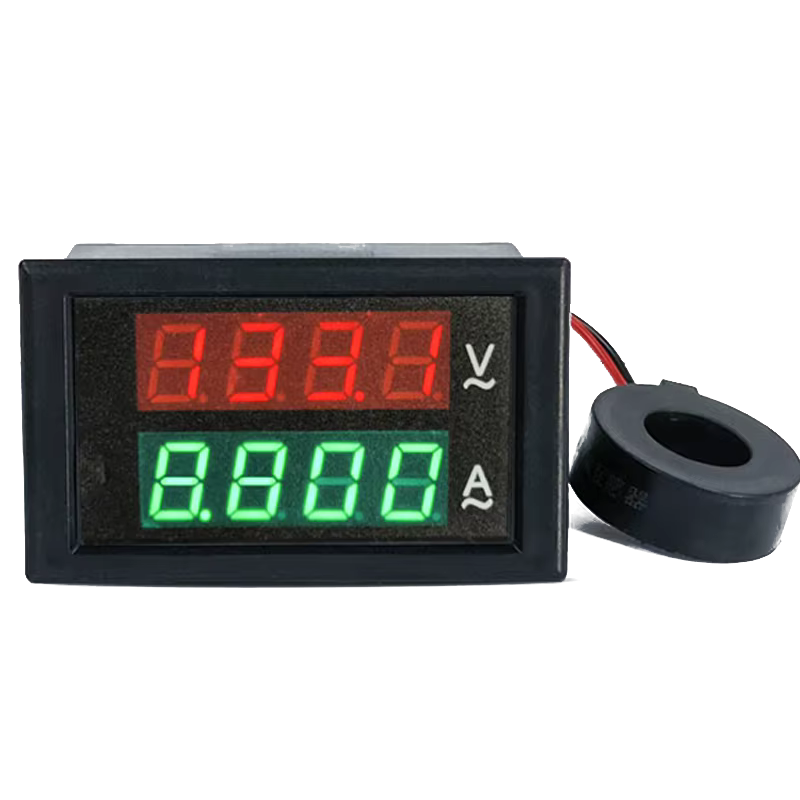

Digital Pannel AC VOLTMETER AMMETER 0~100A 80~300VAC With Currrent Transformer

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Product selling points and features:

1. Strong anti-interference ability

2. A current dual display meter displays the measured AC voltage and AC current simultaneously on the same instrument.

3. Selected chips with stronger stability and more accurate measurement of current

4. High strength, good toughness, sturdy, wear-resistant, and durable

5. One screen dual display: No external power supply required, directly measuring voltage and current simultaneously

Product parameters:

Installation hole size: 76 * 39mm
Measurement accuracy: 1% ± 2 words
Display: voltage display: 4-digit red 0.39-inch LED Nixie tube Current display: 4-digit pure green 0.39-inch LED Nixie tube
Measurement range: AC voltage: AC80.0-300.0V
AC current: AC0.00-100.0A, when the measured current is less than 100A, the current display resolution is 0.01A, when the measured current is greater than 100A, the current display resolution is 0.1A, and the range is automatically converted.
Measurement speed: approximately 2 times per second
