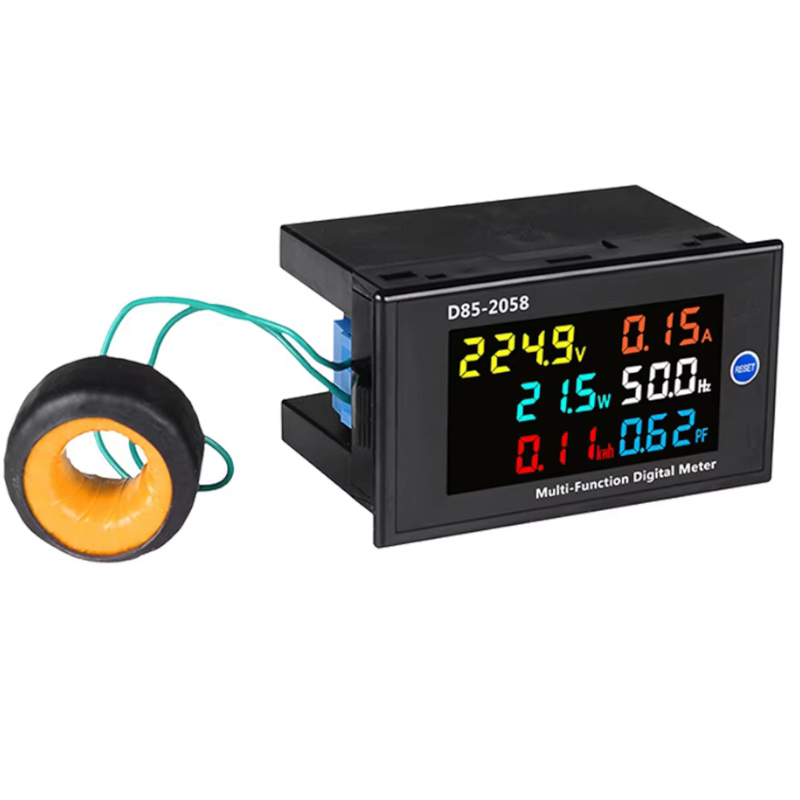

AC40~300V 6-in-1 Digital Meter 100A with current sensor

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Product features:

The pure plane view is broader
Inner toughened film and outer waterproof protective film
178 degrees wide viewing angle without dead angle
The whole house is measured with one meter
Applicable to chemical industry, power plant, automation equipment DOS system and other places
D85-2058 digital display multi-function meter displays the measured AC voltage, AC current, active power, power factor, frequency, and electric quantity/energy on the same screen on the same instrument. The instrument display part adopts color high-definition LCD display.

Main technical indicators

Measurement accuracy: 1% ± 2 words

Measurement range: AC voltage: AC40.0-300.0V or AC200.0-450.0V, true RMS measurement.

AC current: AC0-99.99A, current display resolution is 0.01A, and 100.0A is displayed when it exceeds 100A
Active power: 40-300V display range 0-30000W, 200-450V display range 0-45000W, display resolution between 0-9999.9W is 0.1W, [the rest is 1W]
Electric energy: the measuring range is 0-99999kwh, 0-999.99kwh, the minimum display resolution is 0.01kwh, 10000.0-9999.9kwh, the minimum display resolution is 0.1kwh, 10000.0-99999kwh, the minimum resolution is 1kwh
Power frequency: 45.0Hz-65.0Hz
Power factor: 0.00-1.00PF

Measurement speed: 2 times per second
Boundary dimension: 70 * 40 * 39mm
Installation dimension: 68 * 38mm
Memory function: When the instrument is powered off during use, the accumulated value of the instrument's power will be stored automatically (the previous electric energy data will be saved).

Operating instructions

1.  Connect the secondary end (green lead) of the current transformer attached to the instrument to the blue terminal of the instrument, and pass the wire of the measuring circuit through the middle round hole of the current transformer.

2. Connect the voltage measuring lead to the green terminal of the instrument, and then measure the voltage as above, and start to read the measurement results.

3. After the power is turned on, the instrument displays the measured value.

4. Press and hold the reset button on the front panel of the instrument for 5 seconds, and the accumulated value of the instrument will be reset.

5. 100A transformer hole diameter 15mm can meet the national standard 21-25 square mm standard copper wire through

6. Extreme working conditions:

Working temperature: - 10~+50 ℃

Working humidity: 10~80% (no condensation)

Working pressure: 80~106kPa

Sunlight exposure: no direct exposure

Matters needing attention

1. The wiring of voltage input (green) terminal and current transformer secondary input terminal (blue) terminal cannot be connected incorrectly, otherwise the instrument will be damaged!

2. The 200-450V specification of this instrument cannot be used for measurement on square wave, inverter output and corrected positive and negative wave circuit, otherwise the instrument will be damaged! AC40-300V unlimited

3. During the installation of the instrument, remember not to squeeze the LCD screen of the instrument, otherwise there will be garbled/broken code!

4. If more than one instrument is purchased for use, the mutual inductor cannot be used interchangeably! [Because the instrument and transformer are calibrated in a pair] to avoid affecting the measurement accuracy!

5. Please check 40-300V 100A to measure 110V 220V grid voltage and check 200-450V to measure 380V voltage! If 200-450V is checked to measure 220V voltage, it is not allowed to measure when the voltage is lower than 220V! Remember.
